ENGINE UNIT INSTALLATION

PROCEDURE


  1. INSTALL IGNITION COIL ASSEMBLY

    Click here

  2. INSTALL KNOCK SENSOR

    Click here

  3. INSTALL ENGINE COOLANT TEMPERATURE SENSOR

    Click here

  4. INSTALL NO. 2 WATER BY-PASS PIPE SUB-ASSEMBLY


    1. Connect the No. 2 water by-pass pipe sub-assembly to the oil cooler and heat exchanger assembly and slide the 3 clips to secure it.

    2. Install the No. 2 water by-pass pipe sub-assembly with the 4 bolts.

      Torque:
      10 N*m  { 102 kgf*cm, 7 ft.*lbf }

  5. INSTALL ENGINE OIL LEVEL SENSOR

    Click here

  6. INSTALL ENGINE OIL TEMPERATURE SENSOR

    Click here

  7. INSTALL ENGINE OIL PRESSURE SWITCH ASSEMBLY

    Click here

  8. INSTALL WATER INLET HOUSING


    1. Install the water inlet housing and a new gasket with the 3 bolts.

      Torque:
      21 N*m  { 214 kgf*cm, 15 ft.*lbf }

    2. Connect the water inlet hose to the water inlet housing and slide the clip to secure it.

  9. INSTALL WATER PUMP PULLEY

    Click here

  10. INSTALL OIL PUMP DRIVE SHAFT PULLEY

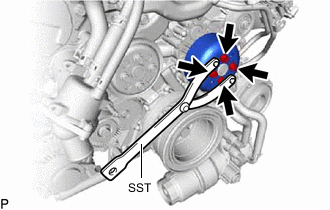

    1. B000Y01N02

      Temporarily install the oil pump drive shaft pulley with the 4 bolts.

    2. Using SST, hold the oil pump drive shaft pulley and tighten the 4 bolts.

      SST
      09960-10010
      Torque:
      23 N*m  { 235 kgf*cm, 17 ft.*lbf }

  11. INSTALL NO. 2 IDLER PULLEY SUB-ASSEMBLY


    1. Install the No. 2 idler pulley sub-assembly with the bolt.

      Torque:
      43 N*m  { 438 kgf*cm, 32 ft.*lbf }

  12. INSTALL NO. 4 ENGINE COVER SUB-ASSEMBLY


    1. Install the No. 4 engine cover sub-assembly.

  13. INSTALL NO. 5 ENGINE WIRE

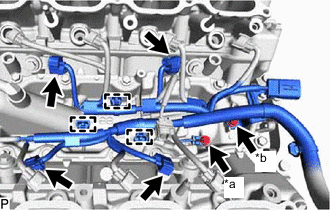

    1. B000YJPC02
      *a Bolt A
      *b Bolt B

      Install the No. 5 engine wire with the 2 bolts.

      Torque:
      for bolt A
      10 N*m  { 102 kgf*cm, 7 ft.*lbf }
      for bolt B
      12 N*m  { 122 kgf*cm, 9 ft.*lbf }

    2. Attach the 3 clamps.

    3. Connect the 4 knock sensor connectors.

  14. INSTALL FUEL INJECTOR SEAL

    Click here

  15. INSTALL DIRECT FUEL INJECTOR ASSEMBLY

    Click here

  16. INSTALL FUEL DELIVERY PIPE LH

    Click here

  17. INSTALL FUEL DELIVERY PIPE RH

    Click here

  18. INSTALL CASE SEPARATOR

    Click here

  19. INSTALL NO. 4 FUEL PIPE SUB-ASSEMBLY

    Click here

  20. INSTALL NO. 2 ENGINE COVER SUB-ASSEMBLY LH

    Click here

  21. SET FUEL PUMP WITH SEAL SUB-ASSEMBLY (for Bank 1)

    Click here

  22. SET FUEL PUMP WITH SEAL SUB-ASSEMBLY (for Bank 2)

    Tech Tips

    Use the same procedure as for the bank 1 side.

  23. TEMPORARILY INSTALL NO. 2 FUEL PIPE SUB-ASSEMBLY

    Click here

  24. TEMPORARILY INSTALL NO. 3 FUEL PIPE SUB-ASSEMBLY

    Click here

  25. INSTALL FUEL PUMP WITH SEAL SUB-ASSEMBLY (for Bank 1)

    Click here

  26. INSTALL FUEL PUMP WITH SEAL SUB-ASSEMBLY (for Bank 2)

    Click here

  27. INSTALL NO. 2 FUEL PIPE SUB-ASSEMBLY

    Click here

  28. INSTALL NO. 3 FUEL PIPE SUB-ASSEMBLY

    Click here

  29. INSTALL NO. 1 FUEL PIPE SUB-ASSEMBLY

    Click here

  30. INSTALL NO. 3 COVER SUB-ASSEMBLY

    Click here

  31. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY

    Click here

  32. INSTALL INTAKE AIR SURGE TANK ASSEMBLY

    Click here

  33. CONNECT NO. 1 FUEL PIPE SUB-ASSEMBLY

    Click here

  34. INSTALL PORT FUEL INJECTOR ASSEMBLY

    Click here

  35. INSTALL INJECTOR VIBRATION INSULATOR

    Click here

  36. INSTALL NO. 1 DELIVERY PIPE SPACER

    Click here

  37. INSTALL FUEL DELIVERY PIPE SUB-ASSEMBLY

    Click here

  38. INSTALL NO. 2 FUEL DELIVERY PIPE SUB-ASSEMBLY

    Click here

  39. INSTALL FUEL TUBE SUB-ASSEMBLY

    Click here

  40. CONNECT PCV HOSE

    Click here

  41. INSTALL NO. 3 PCV HOSE


    1. Connect the No. 3 PCV hose to the cylinder head cover sub-assembly LH and slide the clip to secure the hose.

  42. INSTALL NO. 2 PCV HOSE


    1. Connect the No. 2 PCV hose to the cylinder head cover sub-assembly and slide the clip to secure the hose.

  43. INSTALL FUEL VAPOR FEED HOSE

    Click here

  44. CONNECT VACUUM HOSE SUB-ASSEMBLY

    Click here

  45. INSTALL PURGE VSV

    Click here

  46. INSTALL WATER BY-PASS PIPE SUB-ASSEMBLY


    1. Install the water by-pass pipe sub-assembly to the intake air surge tank assembly with the 2 bolts.

      Torque:
      10 N*m  { 102 kgf*cm, 7 ft.*lbf }

    2. Connect the No. 5 water by-pass hose to the water by-pass pipe sub-assembly and slide the clip to secure it.

    3. Connect the water by-pass hose to the water by-pass pipe sub-assembly and slide the clip to secure it.

    4. Connect the No. 3 water by-pass hose to the water by-pass pipe sub-assembly and slide the clip to secure it.

  47. INSTALL INJECTOR DRIVER

    Click here

  48. INSTALL THROTTLE BODY WITH MOTOR ASSEMBLY

    Click here

  49. INSTALL WIRE HARNESS CLAMP BRACKET

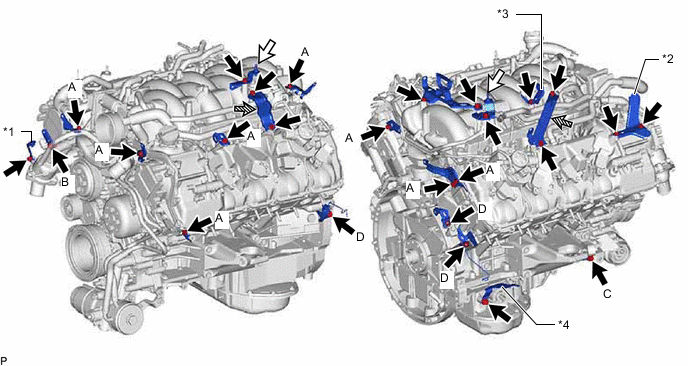

    B000TU0C05
    *1 Intake Air Connector Bracket *2 No. 1 Intake Air Connector Bracket
    *3 No. 2 Intake Air Connector Bracket *4 Crank Position Sensor Bracket
    B000XM7 Bolt B000TT4 V-bank Cover Bracket
    B000YI8 Injector Driver Bracket - -

    1. Install the 13 wire harness clamp brackets with the 15 bolts.

      Torque:
      for bolt A
      10 N*m  { 102 kgf*cm, 7 ft.*lbf }
      for bolt B
      12 N*m  { 122 kgf*cm, 9 ft.*lbf }
      for bolt C
      17.5 N*m  { 178 kgf*cm, 13 ft.*lbf }
      for bolt D
      21 N*m  { 214 kgf*cm, 15 ft.*lbf }

    2. Install the 2 injector driver brackets with the 4 bolts.

      Torque:
      10 N*m  { 102 kgf*cm, 7 ft.*lbf }

    3. Install the 2 V-bank cover brackets with the 2 bolts.

      Torque:
      10 N*m  { 102 kgf*cm, 7 ft.*lbf }

    4. Install the No. 2 intake air connector bracket with the bolt.

      Torque:
      10 N*m  { 102 kgf*cm, 7 ft.*lbf }

    5. Install the No. 1 intake air connector bracket with the 2 bolts.

      Torque:
      10 N*m  { 102 kgf*cm, 7 ft.*lbf }

    6. Install the intake air connector bracket with the bolt.

      Torque:
      5.0 N*m  { 51 kgf*cm, 44 in.*lbf }

    7. Install the crank position sensor bracket with the bolt.

      Torque:
      21 N*m  { 214 kgf*cm, 15 ft.*lbf }

  50. INSTALL NO. 3 V-BANK COVER BRACKET SUB-ASSEMBLY


    1. Install the No. 3 V-bank cover bracket sub-assembly with the bolt.

      Torque:
      10 N*m  { 102 kgf*cm, 7 ft.*lbf }

  51. INSTALL NO. 4 V-BANK COVER BRACKET SUB-ASSEMBLY


    1. Install the No. 4 V-bank cover bracket sub-assembly with the bolt.

      Torque:
      10 N*m  { 102 kgf*cm, 7 ft.*lbf }

  52. INSTALL FRONT NO. 1 ENGINE MOUNTING BRACKET LH


    1. Install the front No. 1 engine mounting bracket LH with the 4 bolts.

      Torque:
      35 N*m  { 357 kgf*cm, 26 ft.*lbf }

  53. INSTALL FRONT NO. 1 ENGINE MOUNTING BRACKET RH


    1. Install the front No. 1 engine mounting bracket RH with the 4 bolts.

      Torque:
      35 N*m  { 357 kgf*cm, 26 ft.*lbf }

  54. CONNECT NO. 5 ENGINE WIRE

    Click here

  55. INSTALL ENGINE WIRE


    1. Install the engine wire to the engine assembly.

  56. INSTALL NO. 1 ENGINE HANGER

    Click here

  57. REMOVE ENGINE FROM ENGINE STAND

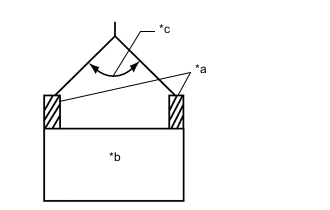

    1. B000V9ZC02
      *a No. 1 Engine Hanger
      *b Engine Assembly
      *c 50° or Less

      Attach an engine sling device and hang the engine assembly with a chain block.

      Tech Tips

      When hanging the engine assembly, make sure to hang the engine assembly with the chain at an angle of 50° or less. Otherwise, the engine assembly or engine hangers may be damaged.

    2. Remove the bolts and engine assembly from the engine stand.
