CAMSHAFT COMPONENTS
ILLUSTRATION
| *1 | NO. 1 CHAIN TENSIONER ASSEMBLY LH | *2 | NO. 1 CHAIN TENSIONER ASSEMBLY RH |
| *3 | NO. 2 CHAIN TENSIONER ASSEMBLY | *4 | NO. 3 CHAIN TENSIONER ASSEMBLY |
| *5 | CHAIN SUB-ASSEMBLY | *6 | CHAIN TENSIONER SLIPPER LH |
| *7 | CHAIN TENSIONER SLIPPER RH | *8 | CHAIN VIBRATION DAMPER LH |
| *9 | CHAIN VIBRATION DAMPER RH | *10 | CAMSHAFT TIMING INTAKE GEAR ASSEMBLY |
| *11 | CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY | *12 | CRANKSHAFT TIMING GEAR KEY |
| *13 | NO. 2 CHAIN SUB-ASSEMBLY | *14 | CRANKSHAFT TIMING SPROCKET LH |
| *15 | CRANKSHAFT TIMING GEAR | *16 | CHAIN TENSIONER GASKET |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

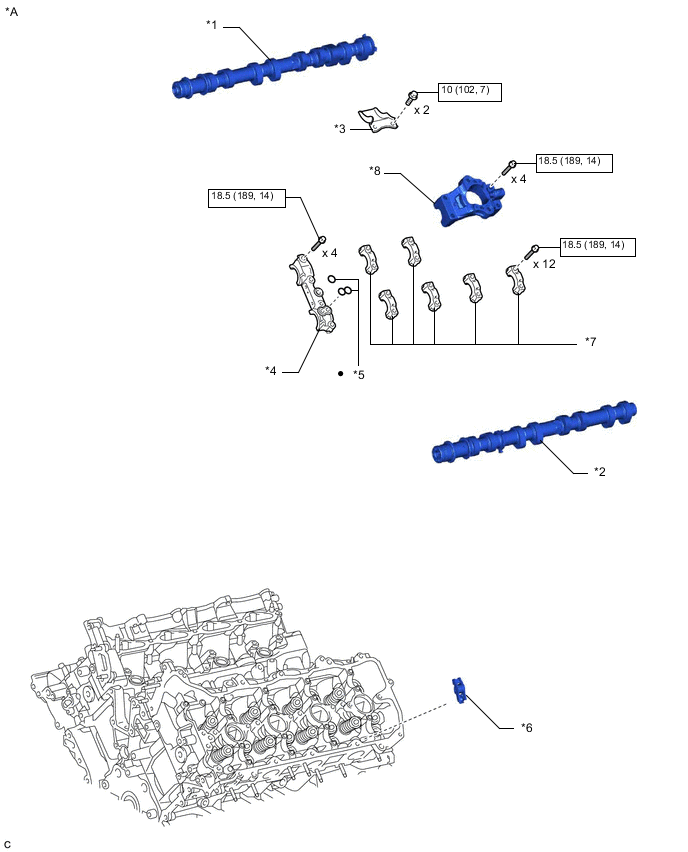

ILLUSTRATION
| *A | for Bank 1 | - | - |
| *1 | NO. 3 CAMSHAFT SUB-ASSEMBLY | *2 | NO. 4 CAMSHAFT SUB-ASSEMBLY |
| *3 | OIL REFLECTOR PLATE LH | *4 | NO. 2 CAMSHAFT BEARING CAP |
| *5 | OIL HOLE GASKET | *6 | NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY |
| *7 | NO. 3 CAMSHAFT BEARING CAP | *8 | NO. 4 CAMSHAFT BEARING CAP |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

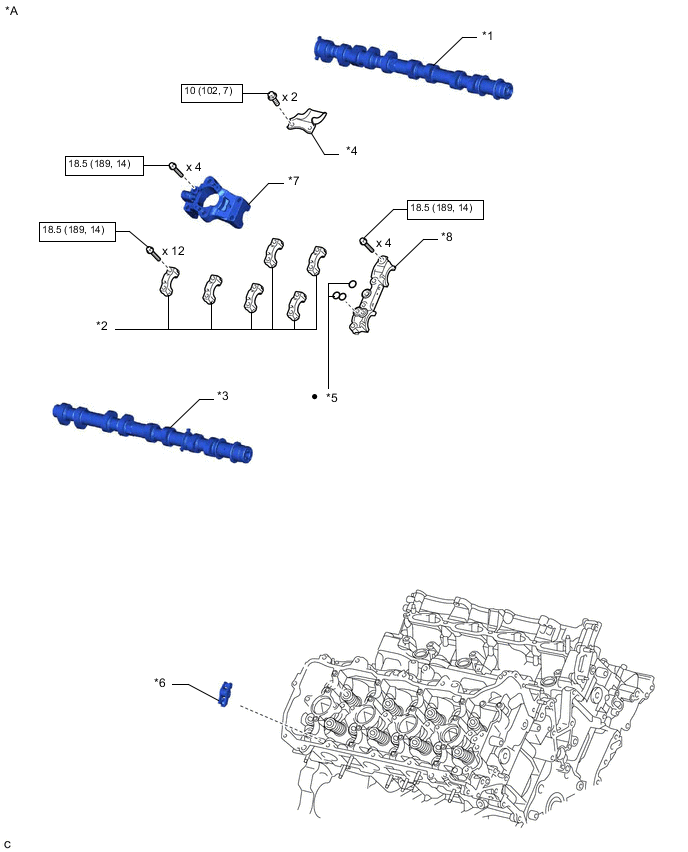

ILLUSTRATION
| *A | for Bank 2 | - | - |
| *1 | CAMSHAFT | *2 | NO. 3 CAMSHAFT BEARING CAP |
| *3 | NO. 2 CAMSHAFT | *4 | OIL REFLECTOR PLATE RH |
| *5 | OIL HOLE GASKET | *6 | NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY |
| *7 | NO. 4 CAMSHAFT BEARING CAP | *8 | NO. 1 CAMSHAFT BEARING CAP |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
