KNOCK SENSOR COMPONENTS

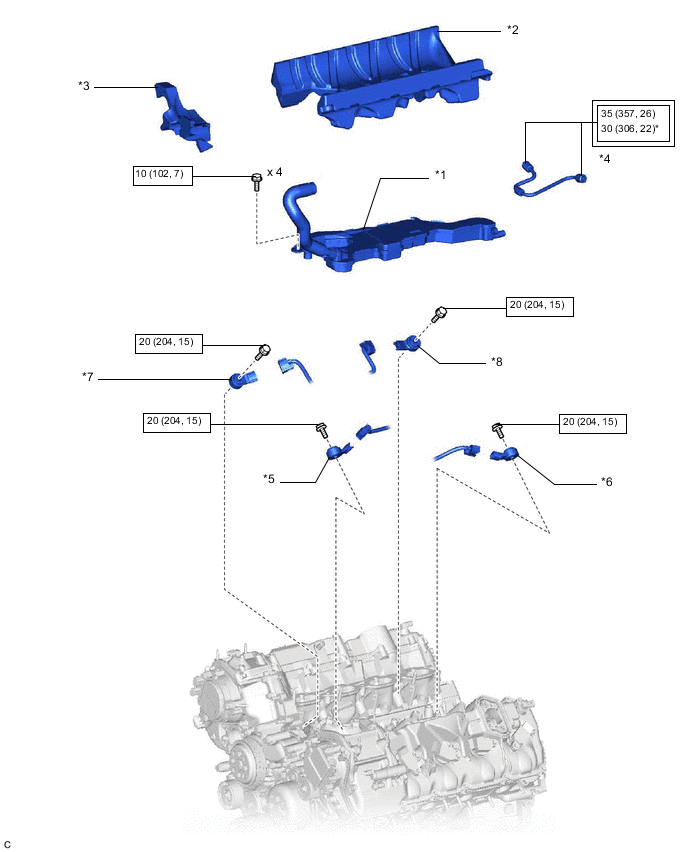

ILLUSTRATION
| *1 | CASE SEPARATOR | *2 | NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *3 | NO. 2 ENGINE COVER SUB-ASSEMBLY LH | *4 | NO. 4 FUEL PIPE SUB-ASSEMBLY |
| *5 | KNOCK CONTROL SENSOR (for Bank 1 Sensor 1) | *6 | KNOCK CONTROL SENSOR (for Bank 1 Sensor 2) |
| *7 | KNOCK CONTROL SENSOR (for Bank 2 Sensor 1) | *8 | KNOCK CONTROL SENSOR (for Bank 2 Sensor 2) |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |  |
N*m (kgf*cm, ft.*lbf): Specified torque |
| * | For use with a union nut wrench | - | - |
