IGNITION COIL AND SPARK PLUG REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the ignition coil and spark plug removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part Necessary Procedure Effect/Inoperative Function when Necessary Procedures are not Performed Link

  • Ignition coil assembly

  • Spark plug

 Inspection after repair

  • Poor idle, etc.

  • Engine start function, etc.

PROCEDURE


  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Click here

  2. REMOVE IGNITION COIL ASSEMBLY

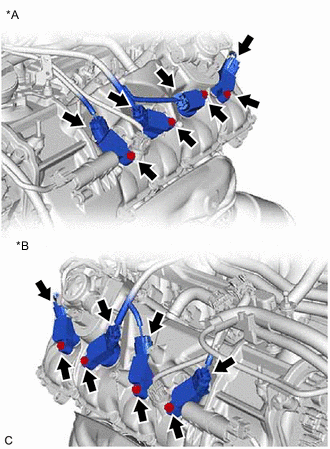

    1. B000UIMC01
      *A for Bank 1
      *B for Bank 2

      Disconnect the 8 ignition coil assembly connectors.

    2. Remove the 8 bolts and 8 ignition coil assemblies from the cylinder head cover sub-assembly and cylinder head cover sub-assembly LH.

      Note

      If an ignition coil assembly has been struck or dropped, replace it.

      Tech Tips

      Arrange the removed parts in the correct order.

  3. REMOVE SPARK PLUG

    Click here
