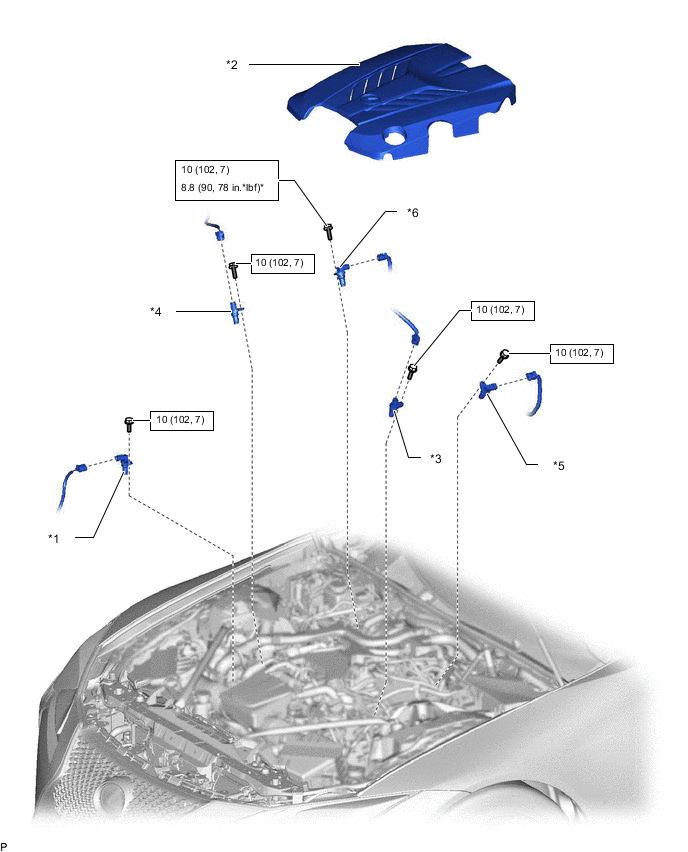

CAMSHAFT POSITION SENSOR COMPONENTS
ILLUSTRATION
| *1 | CAMSHAFT POSITION SENSOR | *2 | V-BANK COVER SUB-ASSEMBLY |
| *3 | VVT SENSOR (for Exhaust Side of Bank 1) | *4 | VVT SENSOR (for Exhaust Side of Bank 2) |
| *5 | VVT SENSOR (for Intake Side of Bank 1) | *6 | VVT SENSOR (for Intake Side of Bank 2) |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with a union nut wrench |
