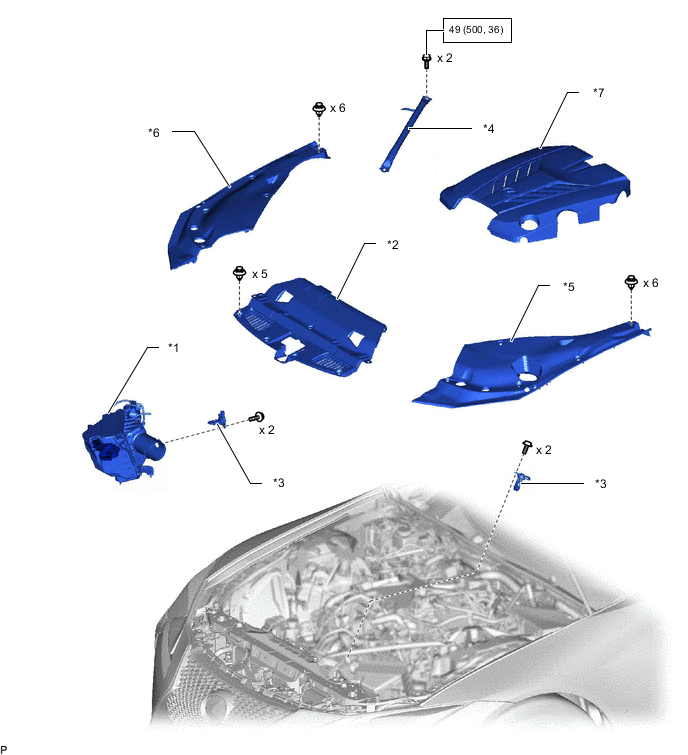

MASS AIR FLOW METER COMPONENTS
ILLUSTRATION
| *1 | AIR CLEANER WITH ELEMENT ASSEMBLY RH | *2 | LOWER RADIATOR AIR DEFLECTOR |
| *3 | MASS AIR FLOW METER SUB-ASSEMBLY | *4 | RADIATOR SUPPORT TO CROSS MEMBER BRACE SUB-ASSEMBLY RH |
| *5 | RADIATOR SUPPORT TO FRAME SEAL LH | *6 | RADIATOR SUPPORT TO FRAME SEAL RH |
| *7 | V-BANK COVER SUB-ASSEMBLY | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
