ENGINE COOLANT TEMPERATURE SENSOR INSTALLATION

CAUTION / NOTICE / HINT

PROCEDURE

1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR

   Tech Tips

   Perform "Inspection After Repair" after replacing the engine coolant temperature sensor.




   • w/ Canister Pump Module:

     Click here

   • w/o Canister Pump Module:

     Click here




   1. Install a new gasket to the engine coolant temperature sensor.

   2.

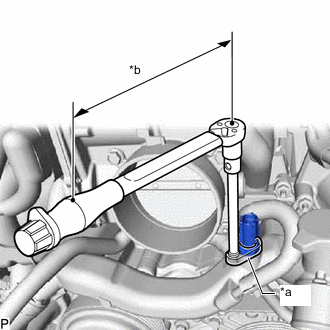

      *a	19 mm Union Nut Wrench
      *b	Torque Wrench Fulcrum Length

      Using a 19 mm union nut wrench, install the engine coolant temperature sensor to the front water by-pass joint.

      Torque:

      Specified tightening torque

      21 N*m  { 214 kgf*cm, 15 ft.*lbf }

      Note

      If the engine coolant temperature sensor has been struck or dropped, replace it.

      Tech Tips




      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Click here

      • When using a union nut wrench (fulcrum length of 30 mm (1.181 in.)) + torque wrench (fulcrum length of 162 mm (6.378 in.)): 17.7 N*m (180 kgf*cm, 13 ft.*lbf)

   3. Connect the engine coolant temperature sensor connector.

2. INSTALL AIR CLEANER HOSE ASSEMBLY

   Click here

3. CONNECT NO. 2 PCV HOSE

   Click here

4. CONNECT NO. 3 PCV HOSE

   Click here

5. INSTALL LOWER RADIATOR AIR DEFLECTOR

   Click here

6. INSTALL RADIATOR SUPPORT TO FRAME SEAL LH

   Click here

7. INSTALL RADIATOR SUPPORT TO FRAME SEAL RH

   Click here

8. INSTALL V-BANK COVER SUB-ASSEMBLY

   Click here
