ENGINE COOLANT TEMPERATURE SENSOR REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the engine coolant temperature sensor removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part Necessary Procedure Effect/Inoperative Function when Necessary Procedures are not Performed Link
engine coolant temperature sensor Inspection after repair

  • Poor idle, etc.

  • Engine start function, etc.

PROCEDURE


  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Click here

  2. REMOVE RADIATOR SUPPORT TO FRAME SEAL RH

    Click here

  3. REMOVE RADIATOR SUPPORT TO FRAME SEAL LH

    Click here

  4. REMOVE LOWER RADIATOR AIR DEFLECTOR

    Click here

  5. DISCONNECT NO. 2 PCV HOSE

    Click here

  6. DISCONNECT NO. 3 PCV HOSE

    Click here

  7. REMOVE AIR CLEANER HOSE ASSEMBLY

    Click here

  8. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

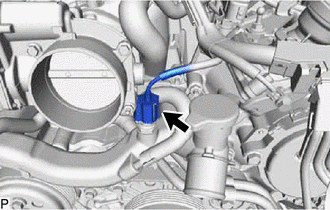

    1. B000YMZ

      Disconnect the engine coolant temperature sensor connector.

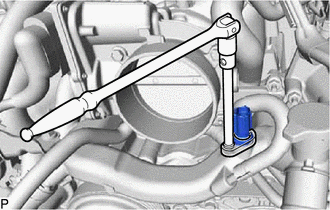

    2. B000U8N

      Using a 19 mm union nut wrench, remove the engine coolant temperature sensor from the front water by-pass joint.

      Note

      If the engine coolant temperature sensor has been struck or dropped, replace it.

    3. Remove the gasket from the engine coolant temperature sensor.
