POWER INTEGRATION SYSTEM SYSTEM DESCRIPTION


  1. LOAD OPERATION OUTPUT


    1. Load is turned on or off according to the operation signals and switch signals from each ECU.

    Load No. 1 Semiconductor Power Integration ECU No. 3 Semiconductor Power Integration ECU
    No. 1 headlight ECU sub-assembly LH ● -
    No. 1 headlight ECU sub-assembly RH ● -
    Stop light - ●
    Rear taillight - ●
    Rear fog light* - ●
    Back-up light - ●
    Rear defogger - ●
    *: w/ Rear Fog Light

  2. SEMICONDUCTOR FUSE FUNCTION

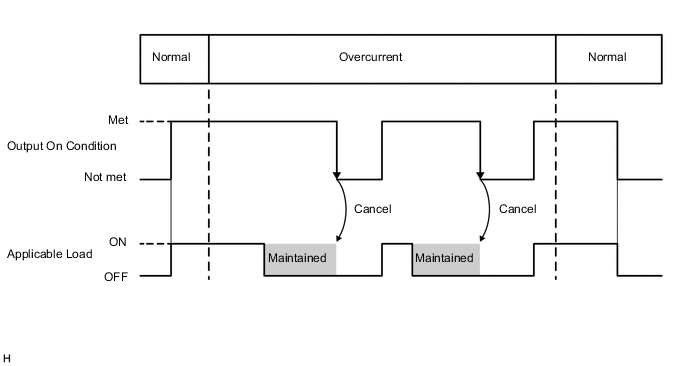

    1. When a malfunction current occurs during load operation, the current is shut off before the electrical lines emit smoke, and then load is turned off. After the current is shut off, the off condition is maintained until the operation signals or switch signals turn off.

      B000V81E02
