CLEARANCE WARNING BUZZER REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the No. 1 clearance warning buzzer removal/installation are shown below.

Necessary Procedures after parts removed / installed / replaced
Replacement Part or Procedure Necessary Procedures Effects / Inoperative when not Performed Link
Disconnect cable from negative (-) battery terminal Memorize steering angle neutral point LKA/LDA system

Click here

Pre-collision system
Parking assist monitor system

Click here

Steering sensor zero point calibration Variable gear ratio steering system

Click here

Tech Tips


  • Use the same procedure as for the RHD and LHD vehicles.

  • The procedure listed below is for the LHD vehicles.

PROCEDURE


  1. PRECAUTION (for LHD)

    CAUTION:

    Be sure to read precaution thoroughly before servicing.

    Click here

    B000WAX

    Note

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Click here

  2. REMOVE NO. 2 DECK BOARD (for LHD)

    Click here

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (for LHD)

    Click here

    CAUTION:


    • Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    • If the airbag deploys for any reason, it may cause a serious accident.

    B000Y52

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  4. REMOVE REAR CONSOLE BOX POCKET

    Click here

  5. REMOVE RADIO REMOTE TUNING SWITCH ASSEMBLY

    Click here

  6. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Click here

  7. REMOVE SHIFTING HOLE COVER ASSEMBLY

    Click here

  8. REMOVE UPPER CONSOLE BOX

    Click here

  9. REMOVE BOX PANEL SUB-ASSEMBLY

    Click here

  10. REMOVE FRONT DOOR SCUFF PLATE LH

    Click here

  11. REMOVE FRONT DOOR OPENING TRIM COVER LH

    Click here

  12. REMOVE FRONT DOOR NO. 2 OPENING TRIM COVER LH

    Click here

  13. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Click here

  14. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Click here

  15. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Click here

  16. REMOVE LOWER NO.1 INSTRUMENT PANEL AIRBAG ASSEMBLY (for LHD)

    Click here

  17. REMOVE NO. 1 CLEARANCE WARNING BUZZER


    1. Disconnect the connector.

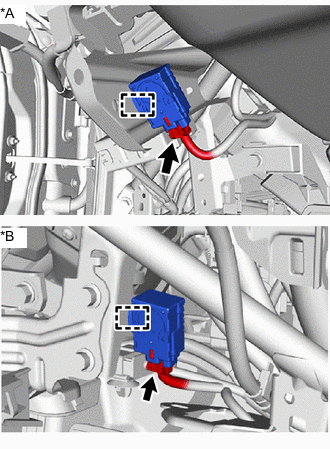

    2. B000Z77C01
      *A for LHD
      *B for RHD

      Using a clip remover, detach the clamp and remove the No. 1 clearance warning buzzer.
