CLEARANCE WARNING BUZZER COMPONENTS

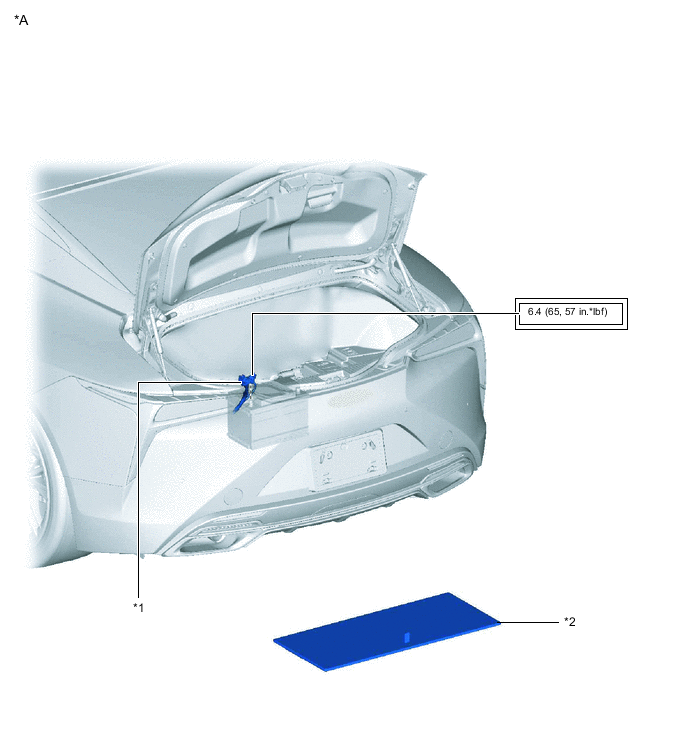

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | NEGATIVE BATTERY TERMINAL | *2 | NO. 2 DECK BOARD |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

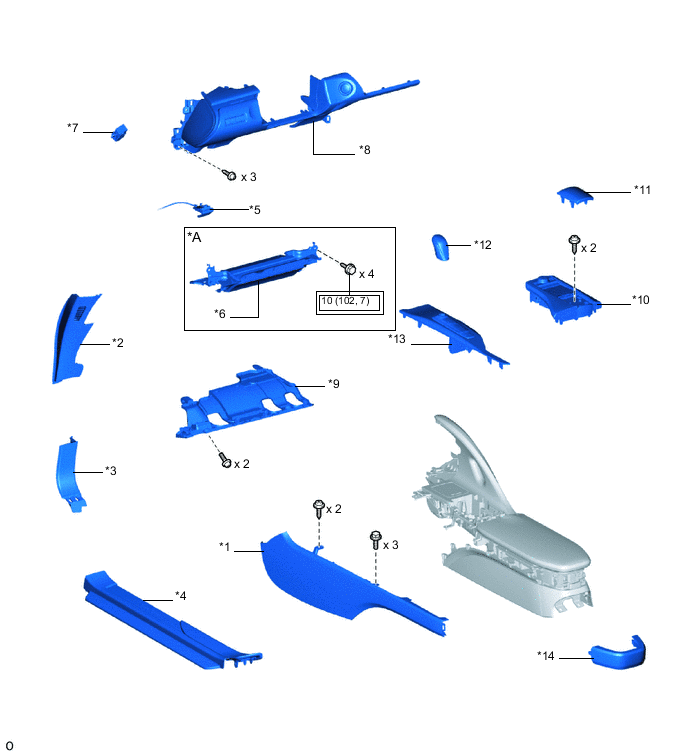

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | BOX PANEL SUB-ASSEMBLY | *2 | FRONT DOOR NO. 2 OPENING TRIM COVER LH |
| *3 | FRONT DOOR OPENING TRIM COVER LH | *4 | FRONT DOOR SCUFF PLATE LH |
| *5 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY | *6 | LOWER NO.1 INSTRUMENT PANEL AIRBAG ASSEMBLY |
| *7 | NO. 1 CLEARANCE WARNING BUZZER | *8 | NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY |
| *9 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | *10 | RADIO REMOTE TUNING SWITCH ASSEMBLY |
| *11 | REAR CONSOLE BOX POCKET | *12 | SHIFT LEVER KNOB SUB-ASSEMBLY |
| *13 | SHIFTING HOLE COVER ASSEMBLY | *14 | UPPER CONSOLE BOX |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
