PARKING ASSIST MONITOR SYSTEM SYSTEM DESCRIPTION


  1. GENERAL


    1. This system has a television camera assembly mounted on the luggage compartment door to display an image of the area behind the vehicle on the multi-display. The multi-display also shows a composite view consisting of the area behind the vehicle and parking guide lines to assist the driver in parking the vehicle by monitoring the area behind the vehicle.

    2. This system consists of the following components:


      1. Television camera assembly

      2. Radio receiver assembly

      3. Multi-display

      4. Steering sensor

      5. ECM

      6. Main body ECU (multiplex network body ECU)

      7. No. 3 semiconductor power integration ECU

      8. Blind spot monitor sensor RH*1

      9. Clearance warning ECU assembly

      10. Front steering control ECU*2


        • *1: w/ Blind Spot Monitor System

        • *2: w/ Variable Gear Ratio Steering System

    3. This system is equipped with a self-diagnosis system, which is operated from a designated window that appears on the multi-display.

  2. FUNCTION OF COMPONENTS


    1. The television camera assembly controls the system by using information from the following components.

      Item Function
      Television Camera Assembly

      • Mounted on the luggage compartment door to transmit a composite image of the area behind the vehicle and guide lines calculated based on signals received from each ECU, to the multi-display.

      • Has a color video camera that uses a Complementary Metal Oxide Semiconductor (CMOS) and wide-angle lens.

      • Stops displaying the guide lines when an open signal is received for the luggage compartment door.

      • Performs overall control of the system by receiving signals from the sensor and ECUs.
      Multi-display

      • Receives video signals which contain a composite image of the area behind the vehicle taken with the television camera assembly and guide lines calculated based on signals received from each ECU.

      • Performs control of the system by receiving the reverse signal from the No. 3 Semiconductor Power Integration ECU.

      • Receives diagnostic mode video signals from the television camera assembly.

      • Displays "Back door is open. Do not use the rear view monitor when the back door is not completely closed." on the back camera position setting screen when the luggage compartment door is open.
      Radio Receiver Assembly Transmits the setting information signal to the television camera assembly via CAN communication.
      Steering Sensor Detects the angle of the steering wheel and transmits the resulting signals to the television camera assembly via CAN communication.
      ECM Transmits the vehicle information signal to the television camera assembly via CAN communication.
      Main Body ECU (Multiplex Network Body ECU) Transmits the luggage compartment door courtesy switch signal to the television camera assembly via CAN communication.
      No. 3 Semiconductor Power Integration ECU Receives the reverse signal from the shift control ECU assembly and transmits it to the multi-display
      Blind Spot Monitor Sensor RH*1 Transmits the RCTA operation condition signals to the television camera assembly via CAN communication.
      Clearance Warning ECU Assembly Transmits the sonar information signal to the television camera assembly via CAN communication.
      Front Steering Control ECU*2 Transmits the VGRS relative angle signals to the television camera assembly via CAN communication.

      • *1: w/ Blind Spot Monitor System

      • *2: w/ Variable Gear Ratio Steering System

  3. OPERATION EXPLANATION


    1. The multi-display receives the reverse signal when the engine is running and the shift position is moved to R. After receiving the reverse signal, the multi-display switches to the parking assist monitor system.

  4. DISPLAY MODE

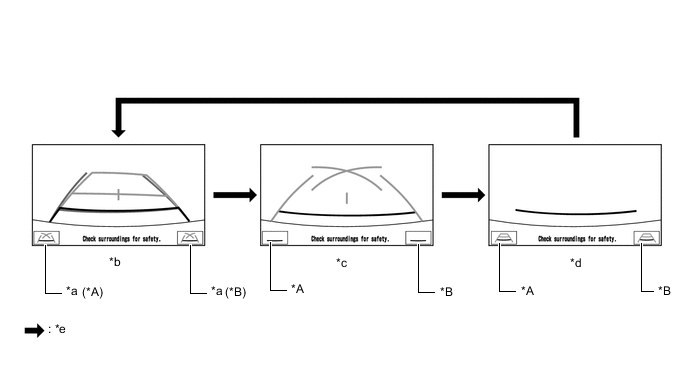

    B000U1IC03
    *A for LHD *B for RHD
    *a Display Mode Switch Screen Button *b Estimated Course Line Display Mode
    *c Parking Assist Guide Line Display Mode *d Distance Guide Line Display Mode
    *e Display Mode Switch Screen Button Pressed - -
    Parking Assist Monitor Display Mode
    Parking Assist Monitor Display Mode

    Distance Guide Lines

    (Red)

    Estimated Course Lines

    (Yellow)

    Distance Guide Line

    (Yellow)

    Vehicle Width Guide Line

    (Blue)

    Distance Guide Line

    (Blue)

    Parking Assist Guide Lines

    (Blue)

    Vehicle Center Guide Line

    (Blue)
    Estimated course line display mode Displayed Displayed Displayed Displayed Displayed Not displayed Displayed
    Parking assist guide line display mode Displayed Not displayed Not displayed Displayed Not displayed Displayed Displayed
    Distance guide line display mode Displayed Not displayed Not displayed Not displayed Not displayed Not displayed Not displayed

  5. DIAGNOSTIC FUNCTION OUTLINE


    1. This parking assist monitor system has a diagnostic function displayed on the multi-display. This function enables calibration (adjustment and verification) of the parking assist monitor system.

      Click here

    2. The following items for the parking assist monitor system can be checked using the GTS.

      Item Proceed to
      DTC

      Click here

      Data List / Active Test

      Click here
