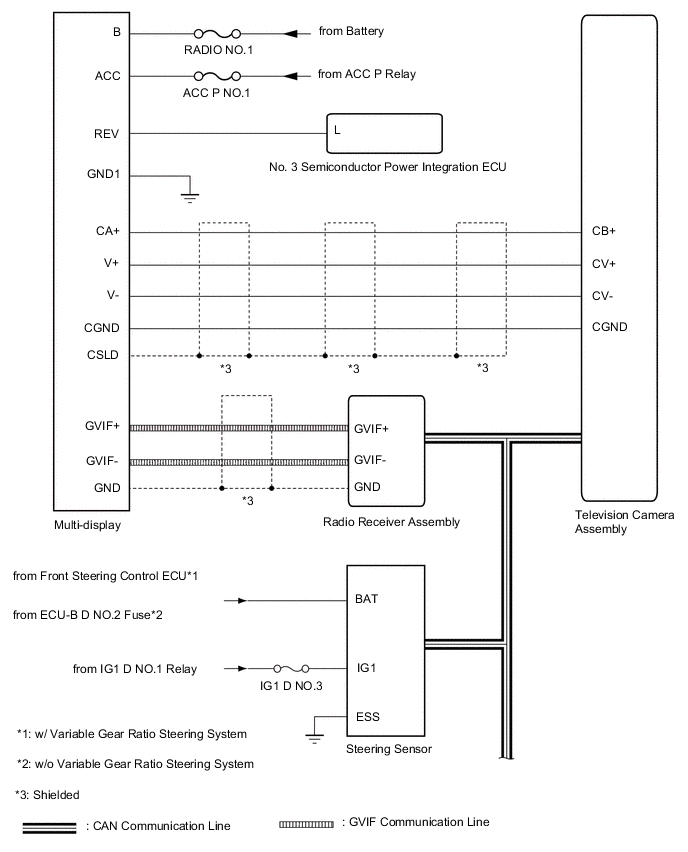

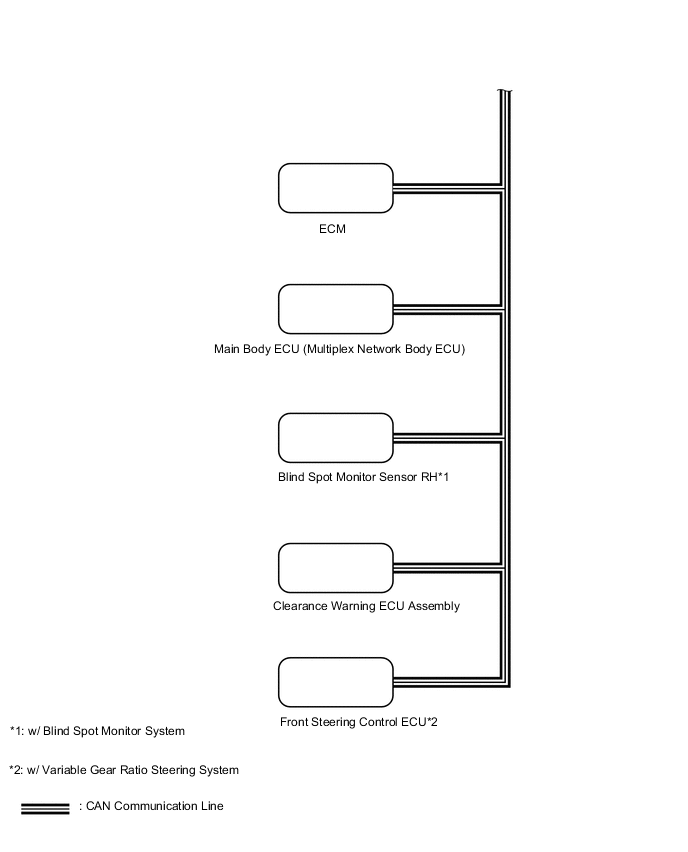

PARKING ASSIST MONITOR SYSTEM SYSTEM DIAGRAM

B000X6IE03
B000X5NE06
Communication Table
Sender Receiver Signal Line
Multi-display Radio Receiver Assembly Camera information signal GVIF
Radio Receiver Assembly Television Camera Assembly Camera information signal CAN
Steering Sensor Television Camera Assembly Steering angle signal CAN
ECM Television Camera Assembly Vehicle information signal CAN
Main Body ECU (Multiplex Network Body ECU) Television Camera Assembly

  • Luggage compartment door courtesy switch signal

  • Vehicle information signal

 CAN
Blind Spot Monitor Sensor RH*1 Television Camera Assembly RCTA operation condition signal CAN
Clearance Warning ECU Assembly Television Camera Assembly Sonar information signal CAN
Front Steering Control ECU*2 Television Camera Assembly VGRS relative angle signal CAN
