LEXUS PARKING ASSIST-SENSOR SYSTEM PARTS LOCATION

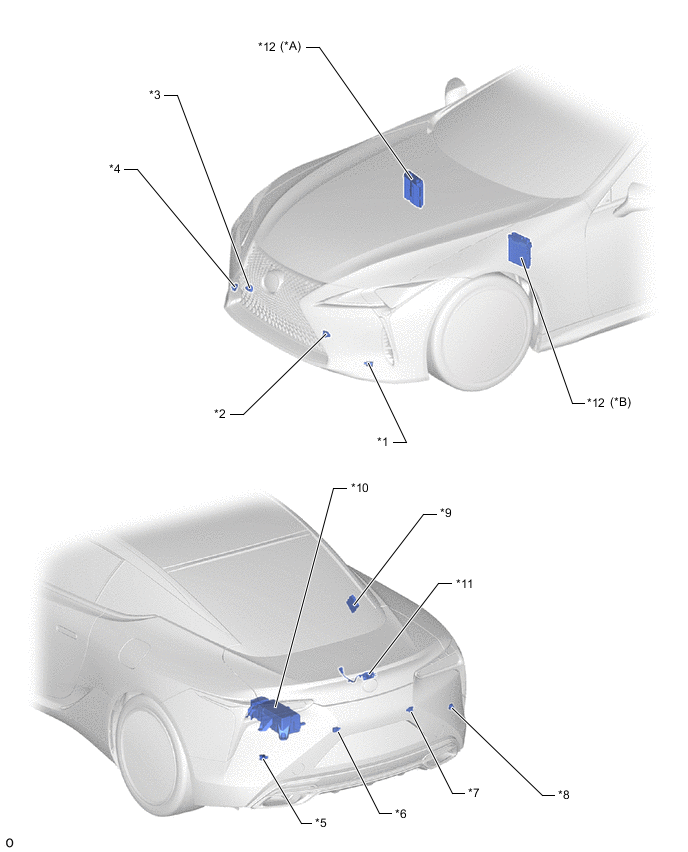

ILLUSTRATION
| *A | for LHD | *B | for RHD |
| *1 | FRONT CORNER ULTRASONIC SENSOR (FRONT LEFT SENSOR) | *2 | FRONT CENTER ULTRASONIC SENSOR (FRONT LEFT CENTER SENSOR) |
| *3 | FRONT CENTER ULTRASONIC SENSOR (FRONT RIGHT CENTER SENSOR) | *4 | FRONT CORNER ULTRASONIC SENSOR (FRONT RIGHT SENSOR) |
| *5 | REAR CORNER ULTRASONIC SENSOR (REAR LEFT SENSOR) | *6 | REAR CENTER ULTRASONIC SENSOR (REAR LEFT CENTER SENSOR) |
| *7 | REAR CENTER ULTRASONIC SENSOR (REAR RIGHT CENTER SENSOR) | *8 | REAR CORNER ULTRASONIC SENSOR (REAR RIGHT SENSOR) |
| *9 | CLEARANCE WARNING ECU ASSEMBLY | *10 | NO. 2 LUGGAGE ROOM RELAY BLOCK - LUG-IG1 NO.4 FUSE |
| *11 | TELEVISION CAMERA ASSEMBLY | *12 | ECM |

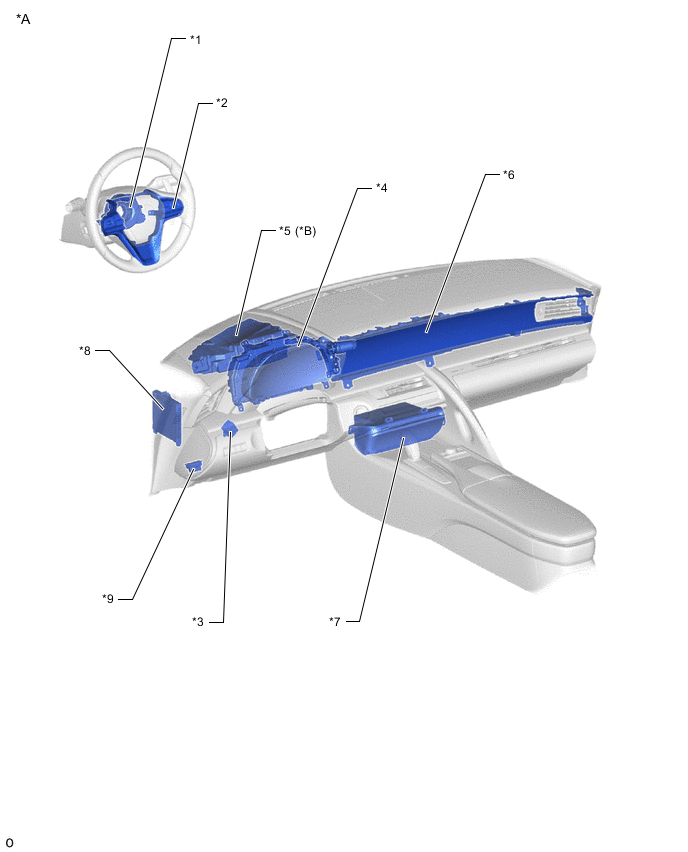

ILLUSTRATION
| *A | for LHD | *B | w/ Headup Display |
| *1 | SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | NO. 1 CLEARANCE WARNING BUZZER | *4 | COMBINATION METER ASSEMBLY |
| *5 | HEADUP DISPLAY (METER MIRROR SUB-ASSEMBLY) | *6 | MULTI-DISPLAY |
| *7 | RADIO RECEIVER ASSEMBLY | *8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | DLC3 | - | - |

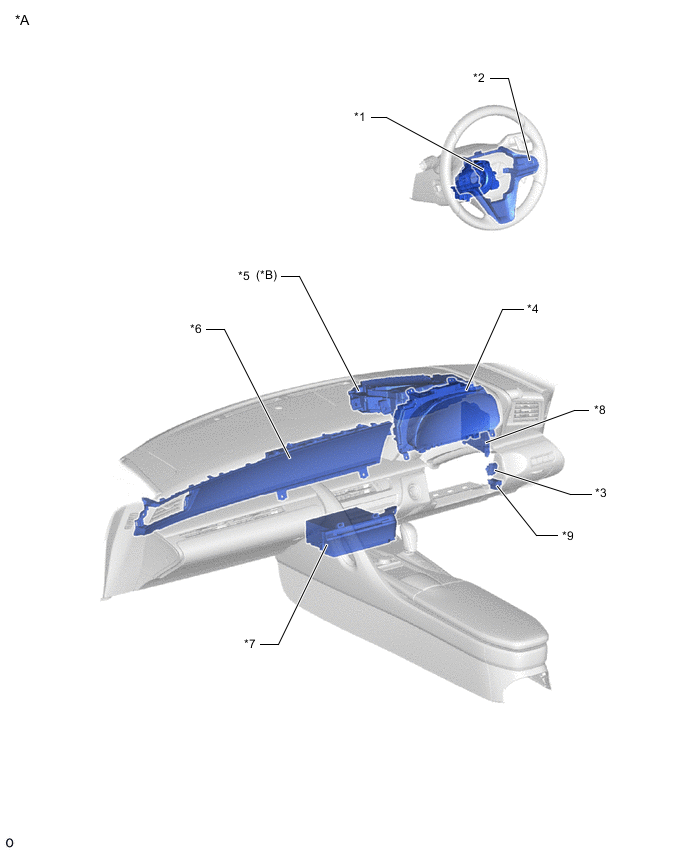

ILLUSTRATION
| *A | for RHD | *B | w/ Headup Display |
| *1 | SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | NO. 1 CLEARANCE WARNING BUZZER | *4 | COMBINATION METER ASSEMBLY |
| *5 | HEADUP DISPLAY (METER MIRROR SUB-ASSEMBLY) | *6 | MULTI-DISPLAY |
| *7 | RADIO RECEIVER ASSEMBLY | *8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | DLC3 | - | - |
