MAYDAY SWITCH INSPECTION

PROCEDURE


  1. INSPECT MAP LIGHT SUB-ASSEMBLY (MAYDAY SWITCH)


    1. Measure the resistance according to the value(s) in the table below.

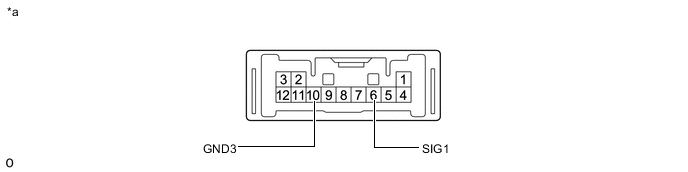

      B000Y8IC02
      *a

      Component without harness connected

      (Map Light Sub-Assembly (Mayday Switch))

      		 - -
      Standard Resistance
      Tester Connection Condition Specified Condition
      6 (SIG1) - 10 (GND3) Manual (SOS) switch not pressed 408 to 416 Ω
      6 (SIG1) - 10 (GND3) Manual (SOS) switch pressed 81.2 to 82.8 Ω

      If the result is not as specified, replace the map light sub-assembly (MAYDAY SWITCH).

    2. Inspect the operation (red indicator)


      1. Check that each indicator illuminates when battery are connected to the map light sub-assembly connector terminals.

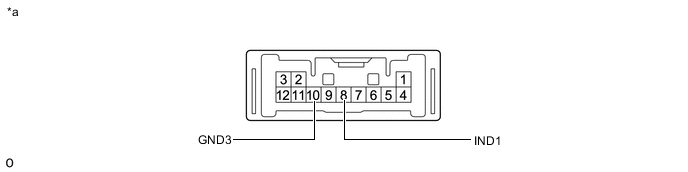

        B000Y8IC03
        *a

        Component without harness connected

        (Map Light Sub-Assembly (Mayday Switch))

        		 - -
        OK
        Connection operation

        Positive (+) lead to terminal → 8 (IND1)

        Negative (-) lead to terminal - 10 (GND3)

        		 Red indicator comes on.

        If the result is not as specified, replace the map light sub-assembly (MAYDAY SWITCH).

    3. Inspect the operation (green indicator)


      1. Check that each indicator illuminates when battery are connected to the map light sub-assembly connector terminals.

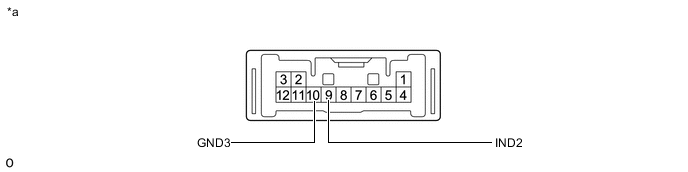

        B000Y8IC04
        *a

        Component without harness connected

        (Map Light Sub-Assembly (Mayday Switch))

        		 - -
        OK
        Connection operation

        Positive (+) lead to terminal → 9 (IND2)

        Negative (-) lead to terminal - 10 (GND3)

        		 Green indicator comes on.

        If the result is not as specified, replace the map light sub-assembly (MAYDAY SWITCH).

    4. Inspect the operation (HELP indicator)


      1. Check that each indicator illuminates when battery are connected to the map light sub-assembly connector terminals.

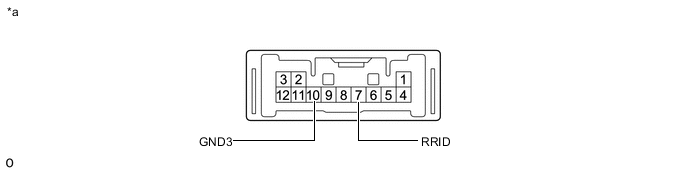

        B000Y8IC05
        *a

        Component without harness connected

        (Map Light Sub-Assembly (Mayday Switch))

        		 - -
        OK
        Connection operation

        Positive (+) lead to terminal → 7 (RRID)

        Negative (-) lead to terminal - 10 (GND3)

        		 HELP indicator comes on.

        If the result is not as specified, replace the map light sub-assembly (MAYDAY SWITCH).
