PARKING ASSIST MONITOR SYSTEM Image from Camera for Parking Assist Monitor is Abnormal

DESCRIPTION

The video signal from the television camera assembly is transmitted to the multi-display.

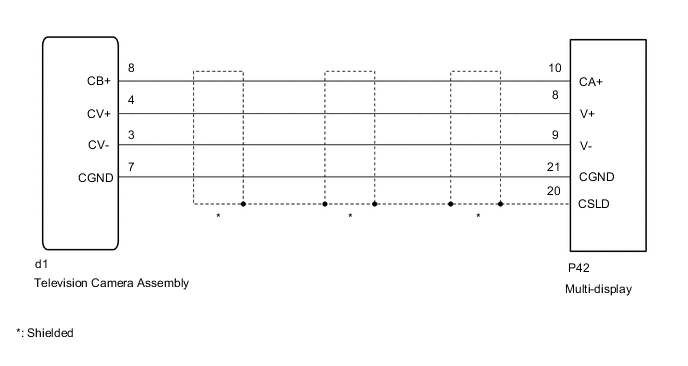

WIRING DIAGRAM

B000WLNE02

CAUTION / NOTICE / HINT

Note


  • If the cable was disconnected from and reconnected to the negative (-) battery terminal, the estimated course lines may not be displayed on the image of the area behind the vehicle. In this case, perform "Correct the Steering Angle Neutral Point".

    Click here

  • Depending on the parts that are replaced or operations that are performed during vehicle inspection or maintenance, calibration of other systems as well as the parking assist monitor system may be needed.

    Click here

Tech Tips

Images may be unclear even in normal conditions if:


  • Electrical devices are used in the cabin (noise may occur in the image).

  • Accessories that generate radio waves have been installed (noise may occur in the image).

  • The multi-display is cold (the image immediately after turning the engine switch on (IG) may be blurred or darker than normal).

  • The camera lens is dirty with snow, mud, etc.

  • A strong beam of light, such as a sunbeam or headlight, hits the camera.

  • It is too dark around the camera (at night, etc.).

  • The ambient temperature around the camera is either too high or too low.

  • The vehicle is tilted at a steep angle.

  • The television camera assembly lens is scratched.

  • The television camera assembly lens has drops of water on it or the humidity is high.

  • When the camera is used under fluorescent lights, sodium lights, mercury lights, etc., the lights and the illuminated area may appear to flicker.

PROCEDURE


  1. CHECK HARNESS AND CONNECTOR (TELEVISION CAMERA ASSEMBLY - MULTI-DISPLAY)

    Result
    Proceed to
    OK
    NG

    1. Disconnect the d1 television camera assembly connector.

    2. Disconnect the P42 multi-display connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      P42-10 (CA+) - d1-8 (CB+) Always Below 1 Ω
      P42-8 (V+) - d1-4 (CV+) Always Below 1 Ω
      P42-9 (V-) - d1-3 (CV-) Always Below 1 Ω
      P42-21 (CGND) - d1-7 (CGND) Always Below 1 Ω
      P42-10 (CA+) or d1-8 (CB+) - Body ground Always 10 kΩ or higher
      P42-8 (V+) or d1-4 (CV+) - Body ground Always 10 kΩ or higher
      P42-9 (V-) or d1-3 (CV-) - Body ground Always 10 kΩ or higher
      P42-21 (CGND) or d1-7 (CGND) - Body ground Always 10 kΩ or higher
      P42-20 (CSLD) - Body ground Always 10 kΩ or higher
      Result
      Proceed to
      OK
      NG

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  2. CHECK TELEVISION CAMERA ASSEMBLY


    1. Replace the television camera assembly with a new or known good one.

      Click here

    2. Check that the parking assist monitor system operates normally.

      OK
      Parking assist monitor system operates normally.
      Result
      Proceed to
      OK
      NG

    OK

    END (TELEVISION CAMERA ASSEMBLY WAS DEFECTIVE)

    NG

    REPLACE MULTI-DISPLAY Click here
