ROOF DRIP SIDE FINISH MOULDING INSTALLATION

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE


  1. INSTALL ROOF DRIP SIDE FINISH MOULDING CLIP

    Note

    When installing new roof drip side finish moulding clips, remove any double-sided tape remaining where the roof drip side finish moulding clips will be installed on the vehicle body and clean the vehicle body with a non-residue solvent.

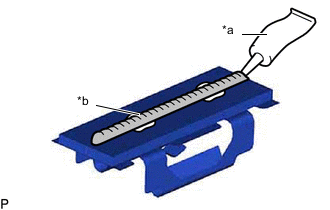

    1. B004HVIC01
      *a Adhesive
      *b 2 to 3 mm Bead of Adhesive

      Apply a 2 to 3 mm (0.0787 to 0.118 in.) bead of adhesive (3M DP-105 or equivalent) to each new roof drip side finish moulding clip.

      Tech Tips

      Adhesive strength (tensile strength): 13.7 MPa (140.0 kgf/cm2, 1987 psi) or more (when the temperature is 23°C (73°F).)

    2. Install the 2 roof drip side finish moulding clips to the positions on the roof panel shown in the illustration. Determine the locations and firmly press and install the 2 roof drip side finish moulding clips.

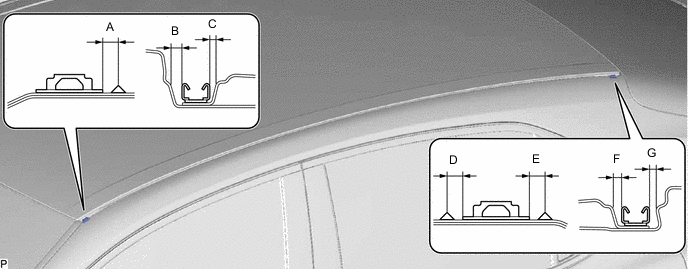

      B004KIGN01
      Standard Measurement
      Area Measurement Area Measurement
      A 4.5 to 5.5 mm (0.177 to 0.217 in.) B 3.6 mm (0.142 in.)
      C 1.7 to 2.7 mm (0.0669 to 0.106 in.) D 5.0 mm (0.197 in.)
      E 4.5 to 5.5 mm (0.177 to 0.217 in.) F 2.3 to 3.3 mm (0.0906 to 0.130 in.)
      G 2.1 mm (0.0827 in.) - -

    3. Wait at least 40 minutes before installing the roof drip side finish moulding.

      Tech Tips


      • Initial hardening time: 40 minutes

      • Complete hardening time: 24 hours

  2. INSTALL ROOF DRIP SIDE FINISH MOULDING


    1. Engage the 2 clips to install the roof drip side finish moulding as shown in the illustration.

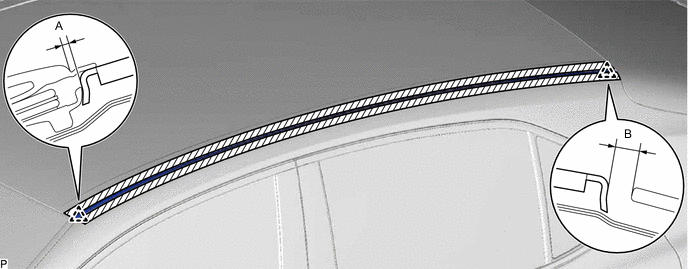

      B004I75N01
      Standard Measurement
      Area Measurement Area Measurement
      A 0.8 mm (0.0315 in.) B 6.2 mm (0.244 in.)
