ROOF DRIP SIDE FINISH MOULDING REMOVAL

Click here
Click here

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

Click here

PROCEDURE


  1. Click here

    REMOVE ROOF DRIP SIDE FINISH MOULDING


    1. B004LIXC01
      B006Y8C Protective Tape - -

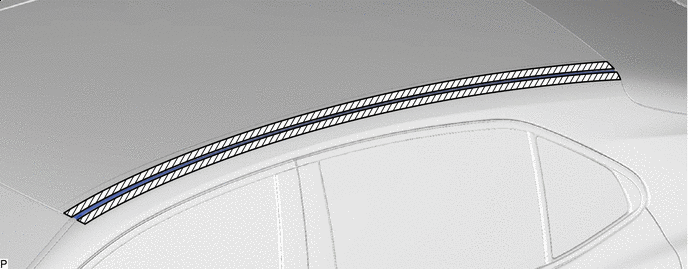

      Apply protective tape around the roof drip side finish moulding as shown in the illustration.

    2. B004HML

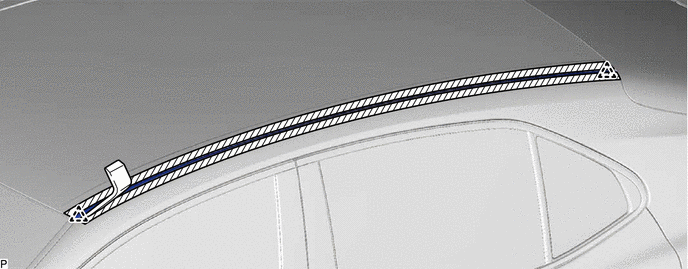

      Using a moulding remover, disengage the 2 clips and remove the roof drip side finish moulding.

      Note:

      • Do not remove the roof drip side finish moulding clips.

      • If a roof drip side finish moulding clip is damaged or falls off, replace it with a new one.
