POWER MIRROR CONTROL SYSTEM(w/ Memory) SYSTEM DIAGRAM

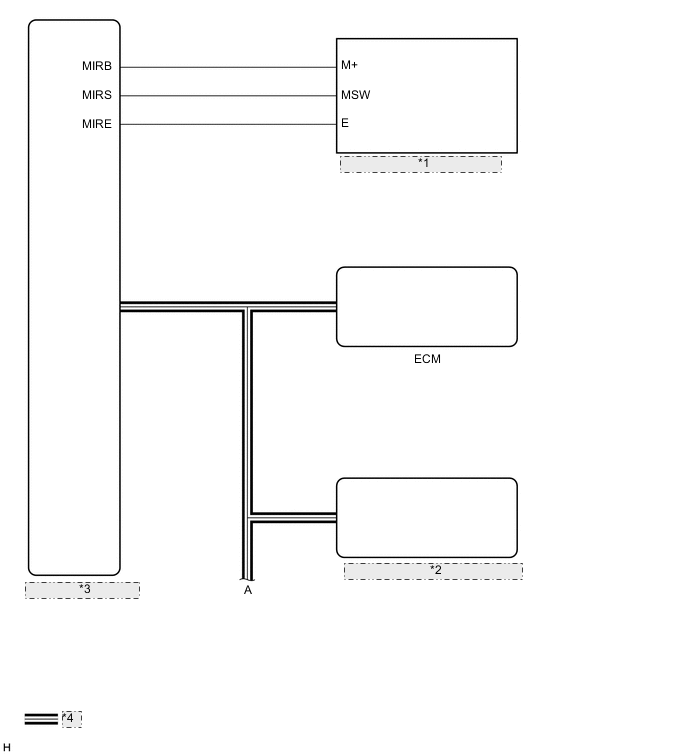

B004MT7E01
*1 Outer Mirror Switch Assembly
*2 Certification ECU (Smart Key ECU Assembly)
*3 Main Body ECU (Multiplex Network Body ECU)
*4 CAN Communication Line

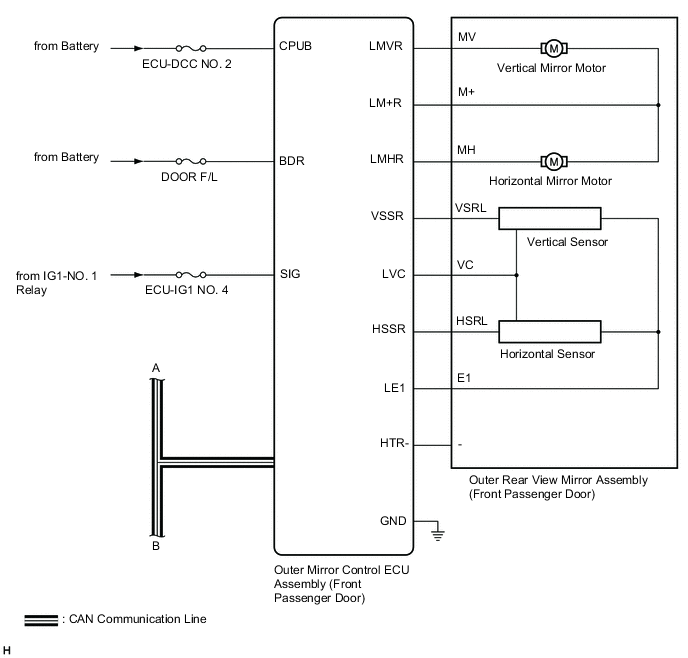

B004LGCE01

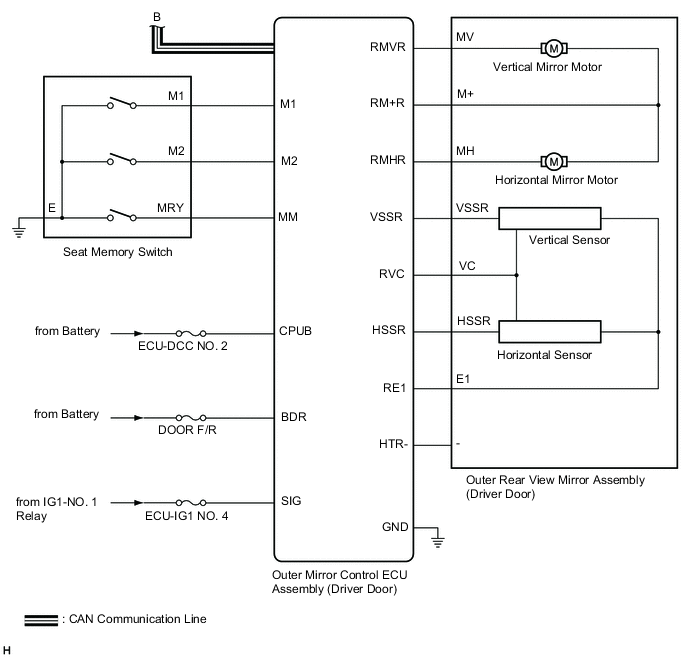

B004HYZE01
Communication Table
Sender Receiver Signal Line
Main Body ECU (Multiplex Network Body ECU) Outer Mirror Control ECU Assembly

  • IG signal

  • ACC signal

  • Outer mirror switch assembly signal

  • Mirror position request signal (seat position memory and reactivation function)

  • Mirror position request signal (reverse shift-linked function)

 CAN
Outer Mirror Control ECU Assembly Main Body ECU (Multiplex Network Body ECU)

  • Outer mirror state signal

  • Seat memory switch signal

 CAN
Certification ECU (Smart Key ECU Assembly) Main Body ECU (Multiplex Network Body ECU) Key ID signal CAN
ECM Main Body ECU (Multiplex Network Body ECU) Reverse signal CAN
