POWER MIRROR CONTROL SYSTEM(w/ Memory) PARTS LOCATION

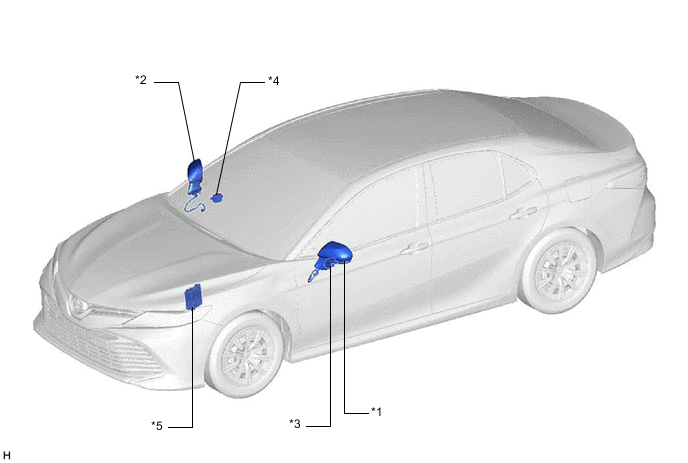

ILLUSTRATION
| *1 | OUTER REAR VIEW MIRROR ASSEMBLY (Front Passenger Door) | *2 | OUTER REAR VIEW MIRROR ASSEMBLY (Driver Door) |
| *3 | OUTER MIRROR CONTROL ECU ASSEMBLY (Front Passenger Door) | *4 | OUTER MIRROR CONTROL ECU ASSEMBLY (Driver Door) |
| *5 | ECM | - | - |

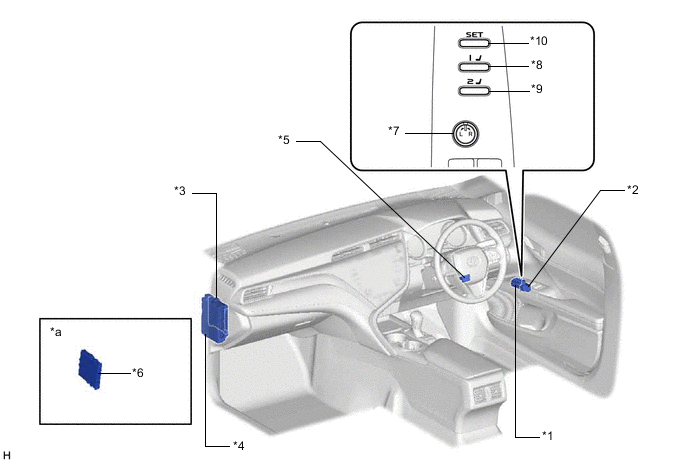

ILLUSTRATION
| *1 | SEAT MEMORY SWITCH | *2 | OUTER MIRROR SWITCH ASSEMBLY |
| *3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - DOOR F/R FUSE - DOOR F/L FUSE - ECU-IG1 NO. 4 FUSE - ECU-DCC NO. 2 FUSE |
| *5 | DLC3 | *6 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *7 | MIRROR SELECT AND SURFACE ADJUST SWITCH | *8 | M1 Switch |
| *9 | M2 Switch | *10 | SET Switch |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |
