SLIDING ROOF HOUSING(for Moon Roof) REASSEMBLY

PROCEDURE


  1. INSTALL ROOF WIND DEFLECTOR PANEL SUB-ASSEMBLY

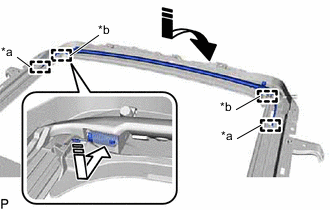

    1. B006Z9QC01
      *a Guide
      *b Spring
      B006ZFL Install in this Direction (1)
      B006WSJ Install in this Direction (2)

      Move the roof wind deflector panel sub-assembly in the direction indicated by the arrow (1) shown in the illustration to engage the 2 guides and install the roof wind deflector panel sub-assembly.

    2. Push each spring in the direction indicated by the arrow (2) shown in the illustration to engage the 2 springs.

      Note

      Make sure that the springs are securely engaged.

  2. INSTALL SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY


    1. B0071CDC01
      B006XFD Hold Position

      Hold down the roof wind deflector panel sub-assembly.

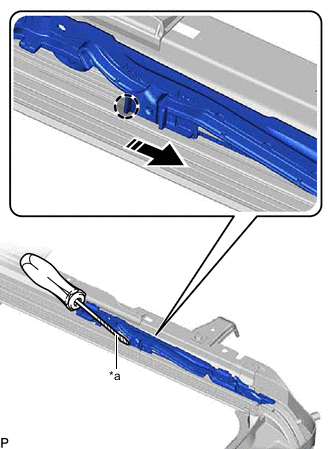

    2. B006Z4TC01
      *a Protective Tape
      B006XFD Push Position
      B006ZFL Install in this Direction

      Using a screwdriver, slide the sliding roof drive cable LH as shown in the illustration to install it.

      Tech Tips


      • Tape the screwdriver tip before use.

      • Use the same procedure for the RH side.

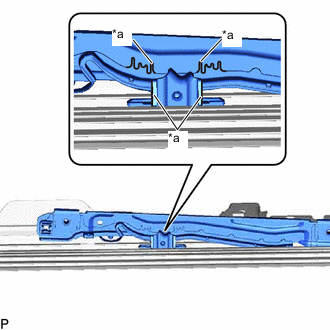

    3. B0070SGC01
      *a Alignment Mark

      Adjust Fully Closed Position:


      1. Using a screwdriver, slide the sliding roof drive cable LH in either direction and align the alignment marks as shown in the illustration.

        Tech Tips

        Use the same procedure for the RH side.

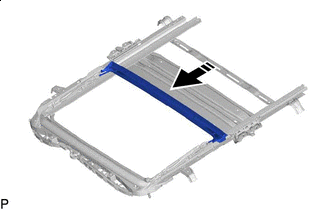

    4. B006Y9OC01
      B006ZFL Install in this Direction

      Insert the rear roof drip channel into the sliding roof housing sub-assembly as shown in the illustration.

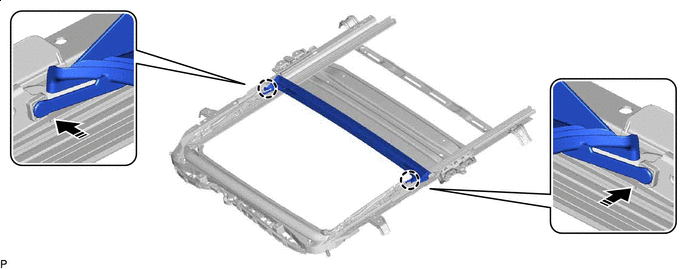

    5. Engage the 2 claws as shown in the illustration to install the rear roof drip channel.

      B006WZ7C01
      B006ZFL Install in this Direction - -

  3. INSTALL SUNSHADE TRIM SUB-ASSEMBLY

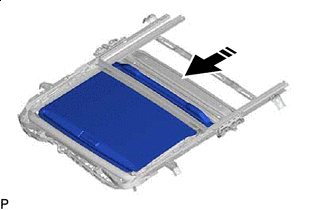

    1. B006Z9ZC01
      B006ZFL Install in this Direction

      Insert the sunshade trim sub-assembly into the sliding roof housing sub-assembly as shown in the illustration to install it.

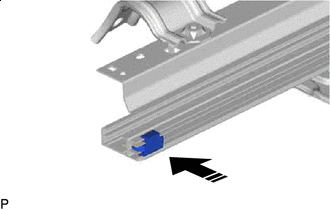

    2. B0071D6C01
      B006ZFL Install in this Direction

      Install the rear sliding roof sunshade stopper as shown in the illustration.

      Tech Tips

      Use the same procedure for the RH side.

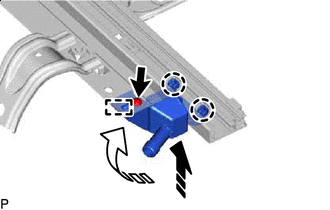

    3. B006YENC01
      B006ZFL Install in this Direction (1)
      B006WSJ Install in this Direction (2)

      Move the sliding roof piece sub-assembly LH in the direction indicated by the arrow (1) shown in the illustration to engage the 2 claws.

      Tech Tips

      Use the same procedure for the RH side.

    4. Move the sliding roof piece sub-assembly LH in the direction indicated by the arrow (2) shown in the illustration to engage the guide.

      Tech Tips

      Use the same procedure for the RH side.

    5. Install the sliding roof piece sub-assembly LH with the screw.

      Tech Tips

      Use the same procedure for the RH side.

  4. INSTALL SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY


    1. Apply MP grease to the gear of the sliding roof drive gear sub-assembly.

    2. B006XEL

      Install the sliding roof drive gear sub-assembly with the 2 bolts.

      Torque:
      5.4 N*m  { 55 kgf*cm, 48 in.*lbf }

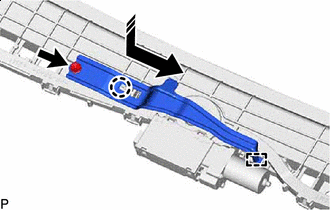

    3. B006Z4GC01
      B006ZFL Install in this Direction

      Engage the guide and claw as shown in the illustration.

    4. Install the map light bracket with the bolt.

      Torque:
      5.4 N*m  { 55 kgf*cm, 48 in.*lbf }
