WIRELESS CHARGING SYSTEM PARTS LOCATION

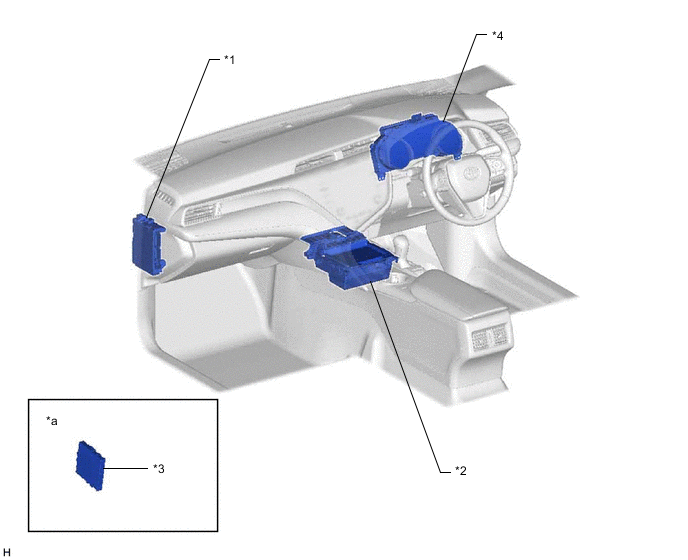

ILLUSTRATION
| *1 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-ACC FUSE - PANEL FUSE - ECU-DCC NO. 2 FUSE |
*2 | MOBILE WIRELESS CHARGER CRADLE ASSEMBLY (FRONT CONSOLE BOX INSERT SUB-ASSEMBLY) |
| *3 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *4 | COMBINATION METER ASSEMBLY |
| *a | Refer to Service Bulletin for the installation position of this part. | - | - |
