AIR CONDITIONING SYSTEM(for Automatic Air Conditioning System) PARTS LOCATION

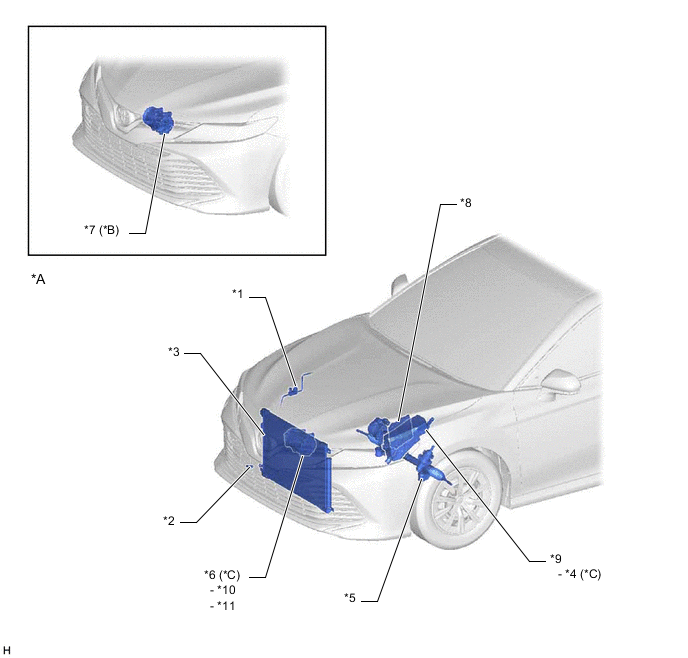

ILLUSTRATION
| *A | for LHD | *B | except 2GR-FKS |
| *C | for 2GR-FKS | - | - |
| *1 | AIR CONDITIONER PRESSURE SENSOR | *2 | THERMISTOR ASSEMBLY |
| *3 | COOLER CONDENSER ASSEMBLY | *4 | MG CLT RELAY |
| *5 | POWER STEERING ECU (RACK AND PINION POWER STEERING GEAR ASSEMBLY) | *6 | COMPRESSOR ASSEMBLY WITH MAGNETIC CLUTCH |
| *7 | COMPRESSOR ASSEMBLY WITH PULLEY (COMPRESSOR SOLENOID) | *8 | ECM |
| *9 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - HTR FUSE - A/C COMP FUSE (for 2GR-FKS) |
*10 | COOLER COMPRESSOR ASSEMBLY (COMPRESSOR SOLENOID) |
| *11 | MAGNET CLUTCH ASSEMBLY | - | - |

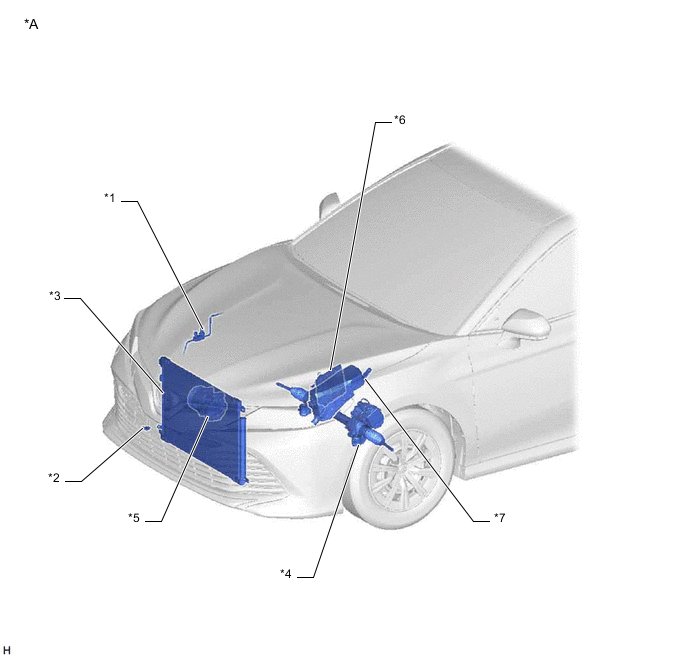

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | AIR CONDITIONER PRESSURE SENSOR | *2 | THERMISTOR ASSEMBLY |
| *3 | COOLER CONDENSER ASSEMBLY | *4 | POWER STEERING ECU (RACK AND PINION POWER STEERING GEAR ASSEMBLY) |
| *5 | COMPRESSOR ASSEMBLY WITH PULLEY (COMPRESSOR SOLENOID) | *6 | ECM |
| *7 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - HTR FUSE |
- | - |

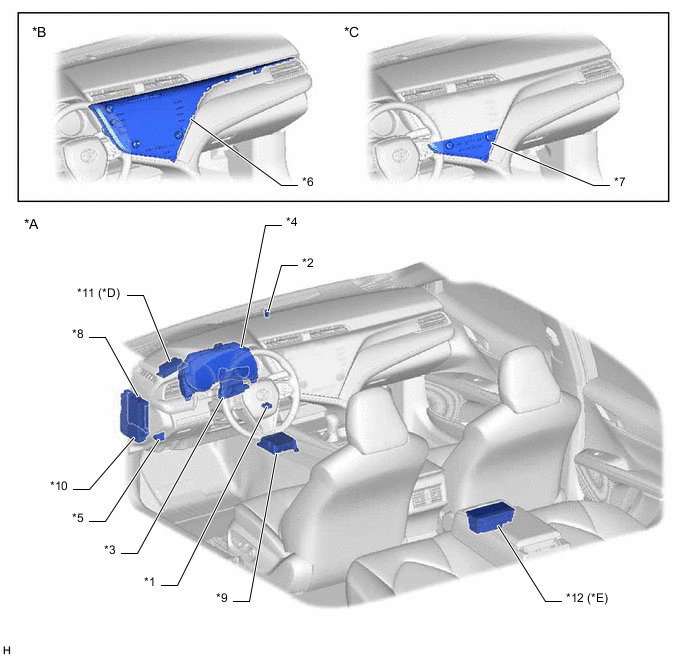

ILLUSTRATION
| *A | for LHD | *B | w/ Radio and Display Receiver |
| *C | w/o Radio and Display Receiver | *D | w/ Ion Generator |
| *E | for 3 Zone Type | - | - |
| *1 | COOLER (ROOM TEMP. SENSOR) THERMISTOR | *2 | AUTOMATIC LIGHT CONTROL SENSOR |
| *3 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *4 | COMBINATION METER ASSEMBLY |
| *5 | DLC3 | *6 | AIR CONDITIONING CONTROL PANEL (RADIO AND DISPLAY RECEIVERASSEMBLY) |
| *7 | AIR CONDITIONING CONTROL ASSEMBLY | *8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | AIRBAG SENSOR ASSEMBLY | *10 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-B NO. 2 FUSE - ECU-IG1 NO. 3 FUSE (for 2GR-FKS) - ECU-IG1 NO. 4 FUSE - ECU-ACC FUSE |
| *11 | ION GENERATOR SUB-ASSEMBLY | *12 | COOLER CONTROL SWITCH ASSEMBLY |

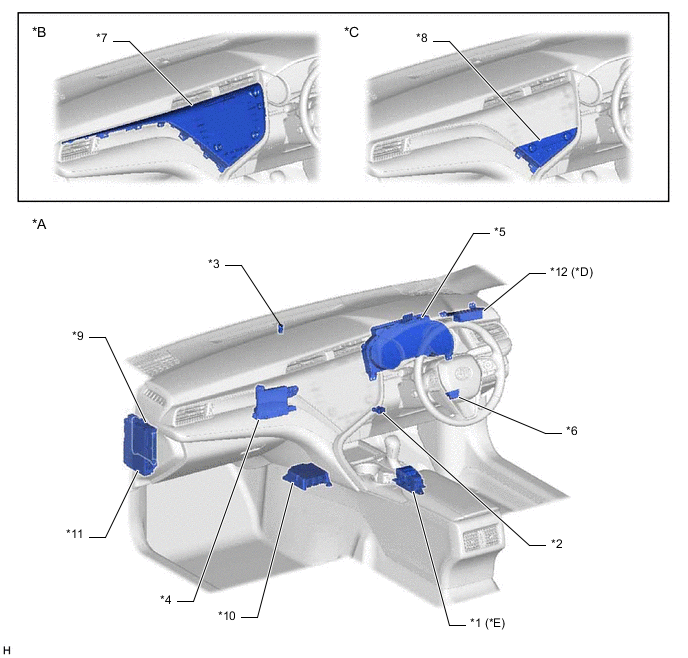

ILLUSTRATION
| *A | for RHD | *B | w/ Radio and Display Receiver |
| *C | w/o Radio and Display Receiver | *D | w/ ECO Switch |
| *E | w/ Ion Generator | - | - |
| *1 | ECO SWITCH ASSEMBLY (ELECTRIC PARKING BRAKE SWITCH ASSEMBLY) | *2 | COOLER (ROOM TEMP. SENSOR) THERMISTOR |
| *3 | AUTOMATIC LIGHT CONTROL SENSOR | *4 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *5 | COMBINATION METER ASSEMBLY | *6 | DLC3 |
| *7 | AIR CONDITIONING CONTROL PANEL (RADIO AND DISPLAY RECEIVER ASSEMBLY) | *8 | AIR CONDITIONING CONTROL ASSEMBLY |
| *9 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *10 | AIRBAG SENSOR ASSEMBLY |
| *11 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-B NO. 2 FUSE - ECU-IG1 NO. 4 FUSE - ECU-ACC FUSE |
*12 | ION GENERATOR SUB-ASSEMBLY |

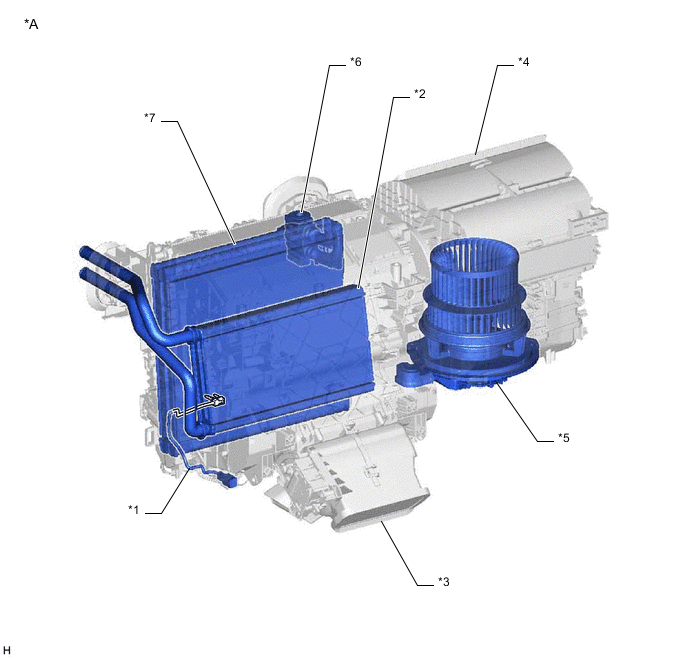

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | NO. 1 COOLER THERMISTOR | *2 | HEATER RADIATOR UNIT SUB-ASSEMBLY |
| *3 | AIR CONDITIONING RADIATOR ASSEMBLY | *4 | BLOWER ASSEMBLY |
| *5 | BLOWER MOTOR WITH FAN SUB-ASSEMBLY | *6 | COOLER EXPANSION VALVE |
| *7 | NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY | - | - |

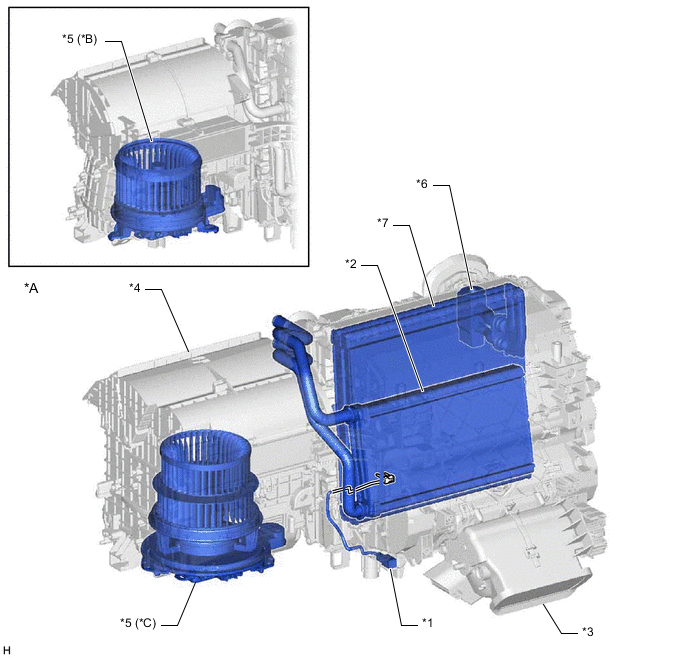

ILLUSTRATION
| *A | for RHD | *B | for 1-tier Type |
| *C | for 2-tier Type | - | - |
| *1 | NO. 1 COOLER THERMISTOR | *2 | HEATER RADIATOR UNIT SUB-ASSEMBLY |
| *3 | AIR CONDITIONING RADIATOR ASSEMBLY | *4 | BLOWER ASSEMBLY |
| *5 | BLOWER MOTOR WITH FAN SUB-ASSEMBLY | *6 | COOLER EXPANSION VALVE |
| *7 | NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY | - | - |

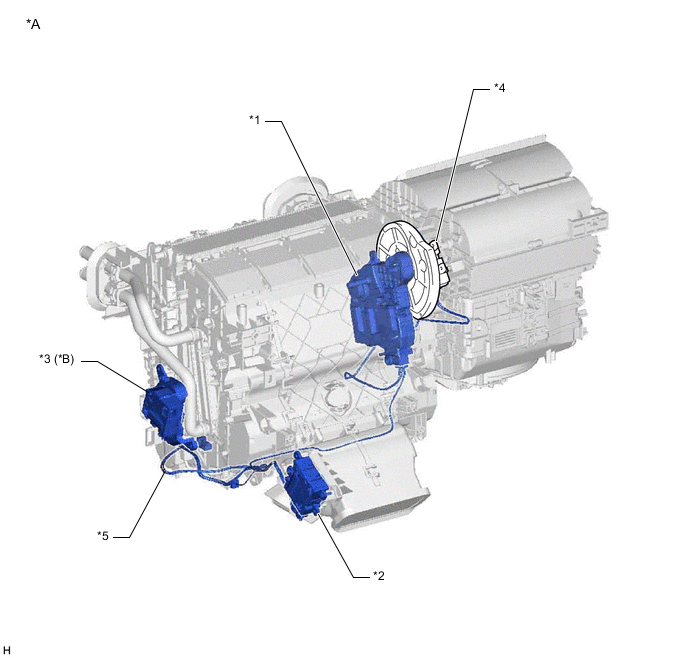

ILLUSTRATION
| *A | for LHD | *B | for 3 Zone Type |
| *1 | NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY | *2 | NO. 2 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY |
| *3 | NO. 3 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY | *4 | NO. 1 BLOWER DAMPER SERVO SUB-ASSEMBLY |
| *5 | AIR CONDITIONING HARNESS ASSEMBLY | - | - |
ILLUSTRATION
| *A | for RHD | - | - |
| *1 | NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY | *2 | NO. 2 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY |
| *3 | NO. 1 BLOWER DAMPER SERVO SUB-ASSEMBLY | *4 | AIR CONDITIONING HARNESS ASSEMBLY |
