CHILD RESTRAINT SEAT TETHER ANCHOR COMPONENTS

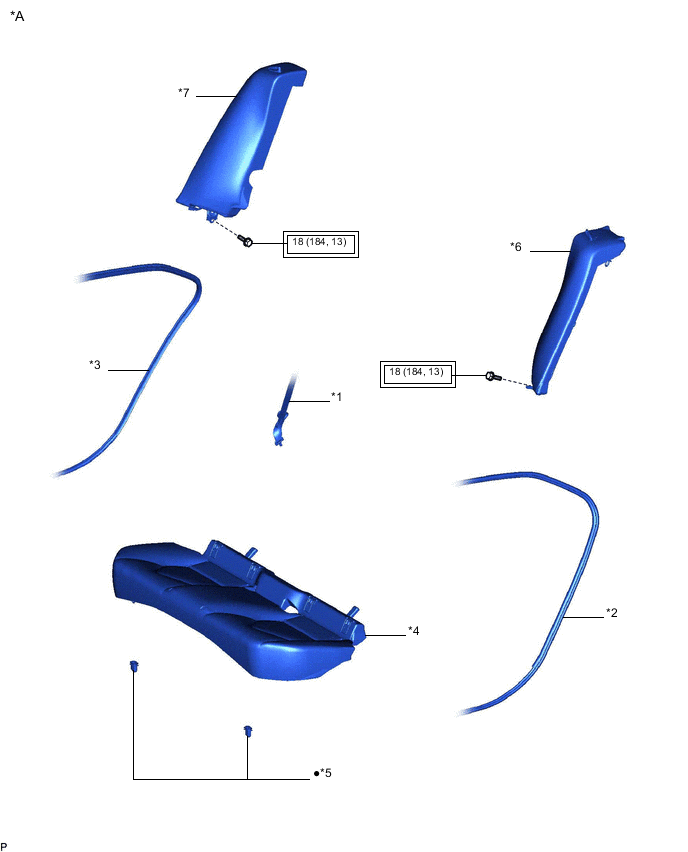

ILLUSTRATION
| *A | for Fold Down Seat Type | - | - |
| *1 | REAR CENTER SEAT OUTER BELT ASSEMBLY | *2 | REAR DOOR OPENING TRIM WEATHERSTRIP LH |
| *3 | REAR DOOR OPENING TRIM WEATHERSTRIP RH | *4 | REAR SEAT CUSHION ASSEMBLY |
| *5 | REAR SEAT CUSHION LOCK HOOK | *6 | REAR SIDE SEATBACK ASSEMBLY LH |
| *7 | REAR SIDE SEATBACK ASSEMBLY RH | - | - |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |

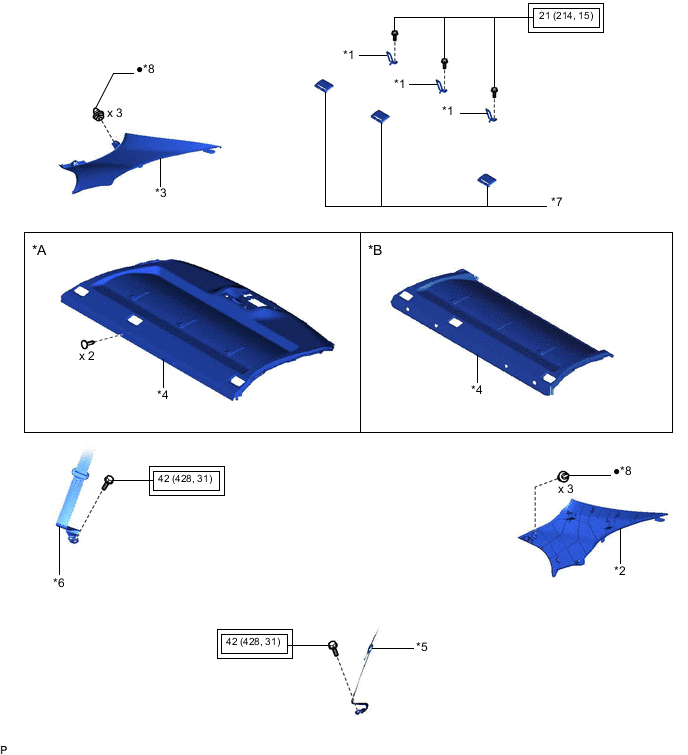

ILLUSTRATION
| *A | w/o Rear Sunshade | *B | w/ Rear Sunshade |
| *1 | CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET | *2 | INNER ROOF SIDE GARNISH LH |
| *3 | INNER ROOF SIDE GARNISH RH | *4 | PACKAGE TRAY TRIM PANEL ASSEMBLY |
| *5 | REAR SEAT OUTER BELT ASSEMBLY LH | *6 | REAR SEAT OUTER BELT ASSEMBLY RH |
| *7 | REAR SEAT SHOULDER BELT HOLE COVER | *8 | CLIP |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
