REAR SEAT RECLINING CONTROL CABLE COMPONENTS
ILLUSTRATION
| *1 | SPARE WHEEL COVER ASSEMBLY | - | - |

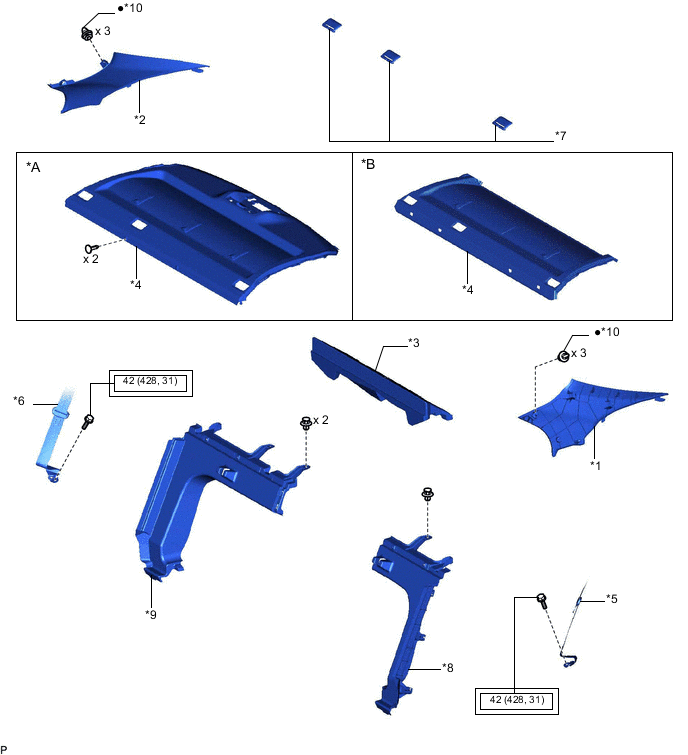

ILLUSTRATION
| *A | w/o Rear Sunshade | *B | w/ Rear Sunshade |
| *1 | INNER ROOF SIDE GARNISH LH | *2 | INNER ROOF SIDE GARNISH RH |
| *3 | LUGGAGE COMPARTMENT TRIM INNER PAD | *4 | PACKAGE TRAY TRIM PANEL ASSEMBLY |
| *5 | REAR SEAT OUTER BELT ASSEMBLY LH | *6 | REAR SEAT OUTER BELT ASSEMBLY RH |
| *7 | REAR SEAT SHOULDER BELT HOLE COVER | *8 | ROOM PARTITION BOARD LH |
| *9 | ROOM PARTITION BOARD RH | *10 | CLIP |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |

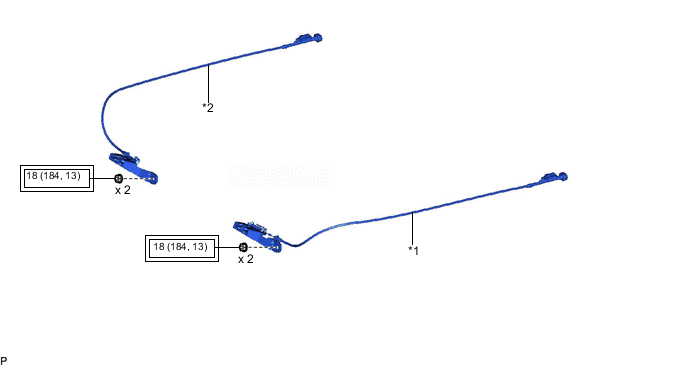

ILLUSTRATION
| *1 | REAR SEATBACK LOCK ASSEMBLY LH | *2 | REAR SEATBACK LOCK ASSEMBLY RH |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
