FRONT SEATBACK HEATER(for Manual Seat) COMPONENTS
ILLUSTRATION

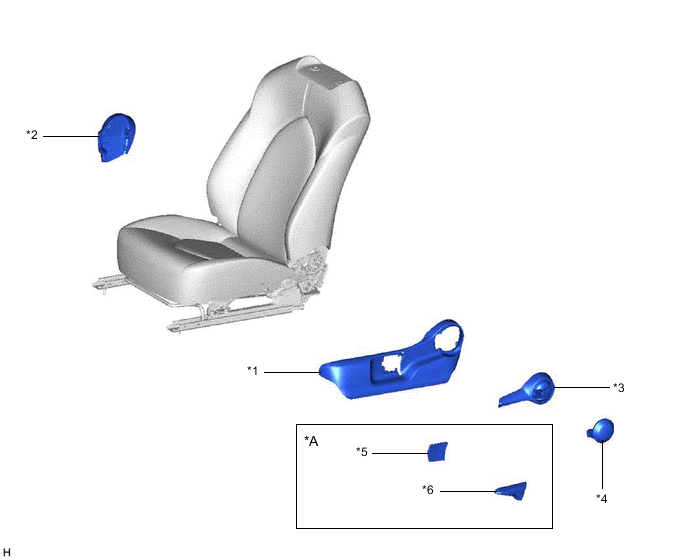

| *A | w/ Vertical Adjuster | - | - |
| *1 | FRONT SEAT CUSHION SHIELD | *2 | FRONT SEAT INNER CUSHION SHIELD |
| *3 | RECLINING ADJUSTER RELEASE HANDLE | *4 | RECLINING HINGE COVER |
| *5 | SEAT ADJUSTER COVER CAP | *6 | VERTICAL ADJUSTING HANDLE |
ILLUSTRATION

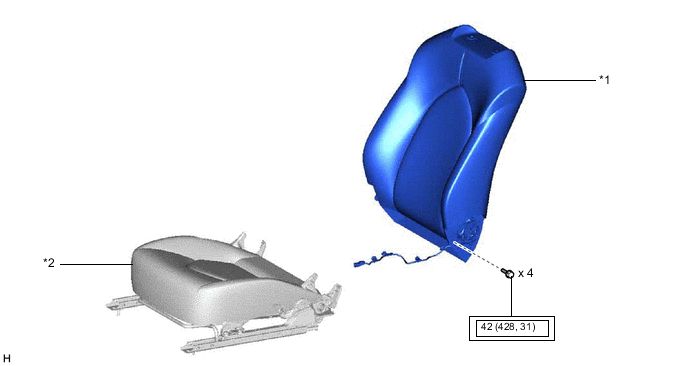

| *1 | SEPARATE TYPE FRONT SEATBACK ASSEMBLY | *2 | SEPARATE TYPE FRONT SEAT CUSHION ASSEMBLY |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
ILLUSTRATION

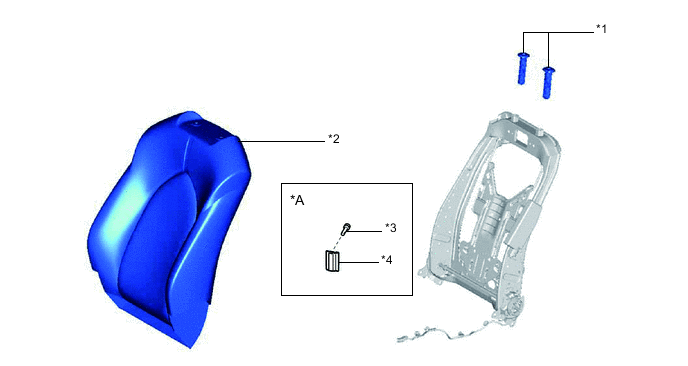

| *A | w/o Rear Seat Belt Warning | - | - |
| *1 | FRONT SEAT HEADREST SUPPORT | *2 | SEPARATE TYPE FRONT SEATBACK COVER WITH PAD |
| *3 | SEATBACK COVER HOOK | *4 | SEAT COVER HANGER |
ILLUSTRATION
| *1 | FRONT SEATBACK HEATER ASSEMBLY | *2 | SEPARATE TYPE FRONT SEATBACK COVER |
| *3 | SEPARATE TYPE FRONT SEATBACK PAD | *4 | TAG PIN |
| ● | Non-reusable part | - | - |
