FRONT SEATBACK HEATER(for Manual Seat) COMPONENTS
ILLUSTRATION
| *1 | FRONT SEAT CUSHION SHIELD RH | *2 | FRONT SEAT INNER CUSHION SHIELD RH |
| *3 | RECLINING ADJUSTER RELEASE HANDLE RH | *4 | RECLINING HINGE COVER RH |
| *5 | SEAT ADJUSTER COVER CAP RH | *6 | VERTICAL ADJUSTING HANDLE RH |
ILLUSTRATION
| *1 | SEPARATE TYPE FRONT SEATBACK ASSEMBLY | *2 | SEPARATE TYPE FRONT SEAT CUSHION ASSEMBLY |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
ILLUSTRATION

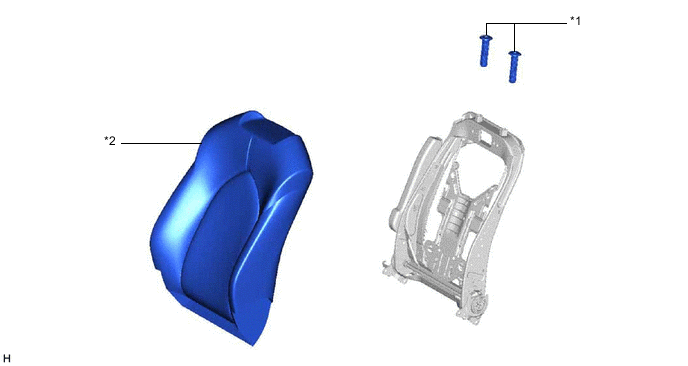

| *1 | FRONT SEAT HEADREST SUPPORT | *2 | SEPARATE TYPE FRONT SEATBACK COVER WITH PAD |
ILLUSTRATION
| *1 | FRONT SEATBACK HEATER ASSEMBLY RH | *2 | SEPARATE TYPE FRONT SEATBACK COVER |
| *3 | SEPARATE TYPE FRONT SEATBACK PAD | *4 | TAG PIN |
| ● | Non-reusable part | - | - |
