LUMBAR SUPPORT ADJUSTER ASSEMBLY(for Power Seat) COMPONENTS
ILLUSTRATION
| *1 | FRONT SEAT CUSHION SHIELD | *2 | FRONT SEAT FRONT CUSHION SHIELD |
| *3 | FRONT SEAT INNER CUSHION SHIELD | - | - |
ILLUSTRATION
| *1 | SEPARATE TYPE FRONT SEATBACK ASSEMBLY | *2 | SEPARATE TYPE FRONT SEAT CUSHION ASSEMBLY |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
ILLUSTRATION
| *A | w/o Rear Seat Belt Warning System | - | - |
| *1 | FRONT SEAT HEADREST SUPPORT | *2 | SEPARATE TYPE FRONT SEATBACK COVER WITH PAD |
| *3 | SEATBACK COVER HOOK | *4 | SEAT COVER HANGER |
ILLUSTRATION
| *A | w/ Climate Control Seat System | - | - |
| *1 | SEATBACK CLIMATE CONTROL BLOWER | - | - |
ILLUSTRATION

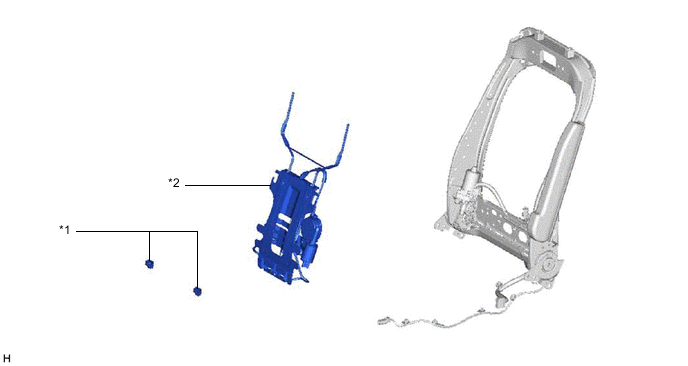

| *1 | FRONT SEATBACK EDGE PROTECTOR | *2 | LUMBAR SUPPORT ADJUSTER ASSEMBLY |
