FRONT SEAT ASSEMBLY(for Manual Seat) REASSEMBLY

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The following procedure is for LHD vehicles.

  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE


  1. INSTALL VERTICAL ADJUSTER BRACKET COVER (w/ Vertical Adjuster)


    1. B00708N

      Engage the claw to install the vertical adjuster bracket cover to the front vertical adjuster brake sub-assembly.

  2. INSTALL FRONT SEAT VERTICAL ADJUSTER ASSEMBLY (w/ Vertical Adjuster)


    1. Install the front seat vertical adjuster assembly.

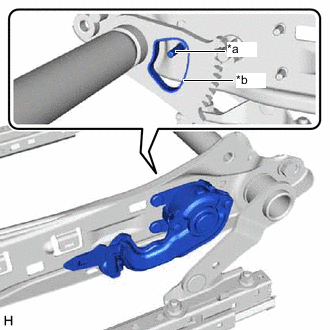

      1. B006ZZ3C01
        *a Stud Bolt of the Front Vertical Adjuster Brake Sub-assembly
        *b Hole of the Front Seat Adjuster Assembly

        Install the front vertical adjuster brake sub-assembly.

        Note

        Make sure to insert the stud bolt of the front vertical adjuster brake sub-assembly into the hole of the front seat adjuster assembly as shown in the illustration.

      2. B006ZE0

        Install the vertical adjuster spacer.

      3. B0070EPN01

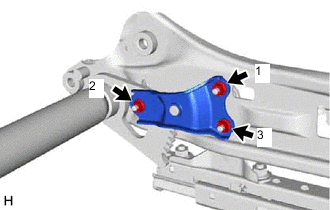

        Install the vertical adjuster plate with the 3 nuts.

        Torque:
        5.0 N*m  { 51 kgf*cm, 44 in.*lbf }

        Note

        Tighten the nuts in the order shown in the illustration.

  3. INSTALL SEAT TRACK ADJUSTING HANDLE


    1. B0071Q3

      Engage the 2 claws to install the seat track adjusting handle to the front seat adjuster assembly.

  4. INSTALL FRONT SEAT CUSHION SPRING SUB-ASSEMBLY


    1. B006XKI

      Engage the 6 hooks to install the front seat cushion spring sub-assembly to the front seat adjuster assembly.

  5. INSTALL FRONT SEAT CUSHION WIRE HARNESS HOLDER


    1. B006ZHA

      Engage the claw to install the front seat cushion wire harness holder.

    2. Install the 2 screws.

  6. INSTALL FRONT SEAT WIRE (w/ Seat Heater System)


    1. Connect each connector and engage each clamp to install the front seat wire.

  7. INSTALL FRONT SEAT WIRE RH (w/ Lumbar Support)


    1. Connect each connector and engage each clamp to install the front seat wire RH.

  8. INSTALL FRONT SEAT WIRE RH (w/ Occupant Classification System)


    1. Connect each connector and engage each clamp to install the front seat wire RH.

  9. INSTALL SEAT HEATER CONTROL SUB-ASSEMBLY (w/ Seat Heater System)

    Click here

  10. INSTALL FRONT SEAT LOWER CUSHION SHIELD LH (w/ Vertical Adjuster)


    1. B006X7IC01
      *a Hook
      *b Guide

      Engage the claw and guide to install the front seat lower cushion shield LH.

    2. Engage the hook.

  11. INSTALL FRONT SEAT LOWER CUSHION SHIELD RH (w/ Vertical Adjuster)


    1. B006Z8GC01
      *a Hook
      *b Guide

      Engage the claw and guide to install the front seat lower cushion shield RH.

    2. Engage the hook.

  12. INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER LH (w/ Vertical Adjuster)


    1. B006ZEL

      Engage the 4 claws to install the LH seat reclining adjuster inside cover LH.

    2. w/ Lumbar Support:


      1. B006Z4D

        Engage the claw.

  13. INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER RH (w/ Vertical Adjuster)


    1. B006XAK

      Engage the 4 claws to install the LH seat reclining adjuster inside cover RH.

  14. INSTALL RH SEAT RECLINING ADJUSTER INSIDE COVER LH (w/o Vertical Adjuster)


    1. B006WUC

      Engage the 4 claws to install the RH seat reclining adjuster inside cover LH.

  15. INSTALL RH SEAT RECLINING ADJUSTER INSIDE COVER RH (w/o Vertical Adjuster)


    1. B006YWT

      Engage the 4 claws to install the RH seat reclining adjuster inside cover RH.

  16. INSTALL FRONT SEAT CUSHION HEATER ASSEMBLY (w/ Seat Heater System)

    Click here

  17. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER


    1. B006ZIA

      Engage the 14 claws to install the separate type front seat cushion cover to the separate type front seat cushion pad.

  18. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD


    1. Engage the 10 hooks to install the separate type front seat cushion cover with pad to the separate type front seat cushion spring assembly.

      B006ZTO
    2. B0071M2

      Engage the 2 hooks.

    3. w/ Seat Heater System:


      1. B006Z7P

        Connect the connector and engage the clamp.

    4. w/ Occupant Detection Sensor:


      1. B006XM2C02
        B006ZFL Install in this Direction

        Engage the claw to install the connector holder to the occupant detection sensor wire harness as shown in the illustration.

      2. B006Y6SC02
        B006ZFL Install in this Direction

        Engage the claw to install the connector holder as shown in the illustration.

  19. INSTALL FRONT SEAT NO. 2 WIRE (w/ Lumbar Support)


    1. B0071S0

      Engage the clamp to install the front seat No. 2 wire.

  20. INSTALL FRONT NO. 2 SEATBACK HOOK


    1. B00714G

      Install the 2 front No. 2 seatback hooks to the front seatback frame sub-assembly.

  21. INSTALL FRONT SEATBACK EDGE PROTECTOR


    1. w/o Lumbar Support:


      1. Install the 2 front seatback edge protectors to the front seatback spring sub-assembly.

    2. w/ Lumbar Support:


      1. Install the 2 front seatback edge protectors to the lumbar support adjuster assembly RH.

  22. INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY RH (w/ Lumbar Support)

    Click here

  23. INSTALL FRONT SEATBACK SPRING SUB-ASSEMBLY (w/o Lumbar Support)


    1. B006XPXC01
      B006ZFL Install in this Direction

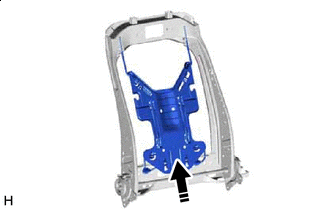

      Install the front seatback spring sub-assembly to the front seatback frame sub-assembly as shown in the illustration.

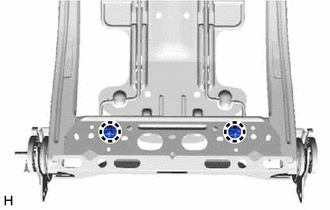

    2. B0070TN

      Engage the 2 claws to install the 2 front seatback edge protectors to the front seatback frame sub-assembly.

  24. INSTALL FRONT SEAT AIRBAG ASSEMBLY (w/ Front Seat Side Airbag)

    Click here

  25. INSTALL FRONT SEATBACK HEATER ASSEMBLY (w/ Seat Heater System)

    Click here

  26. INSTALL SEPARATE TYPE FRONT SEATBACK COVER


    1. B006XFI

      Engage the 9 claws to install the separate type front seatback cover to the separate type front seatback pad.

  27. INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD


    1. Install the separate type front seatback cover with pad.

  28. INSTALL FRONT SEAT HEADREST SUPPORT


    1. B0070PE

      Engage the 4 claws to install the 2 front seat headrest supports.

    2. w/o Rear Seat Belt Warning:


      1. B006ZKIC01
        *1 Seat Cover Hanger
        *a Bracket
        B006ZFL Install in this Direction

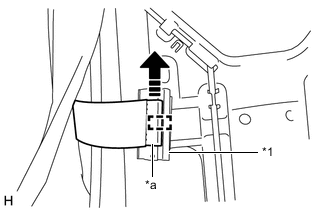

        Slide the bracket as shown in the illustration to engage the hook and connect the bracket to the seat cover hanger.

        Note


        • For vehicles with a front seat airbag assembly, the separate type front seatback cover with pad must be securely installed. Otherwise, the front seat airbag assembly may not deploy properly.

        • Make sure that the strap is not twisted after connecting the bracket to the seat cover hanger.

        • Install the bracket securely.

      2. B006Y2KC01
        *1 Seatback Cover Hook
        *a Pin

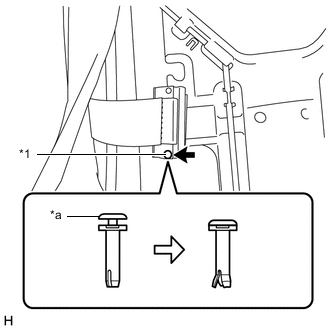

        Insert the seatback cover hook and push in the pin to install it as shown in the illustration.

      3. B006Z2DC01
        B006ZFL Install in this Direction

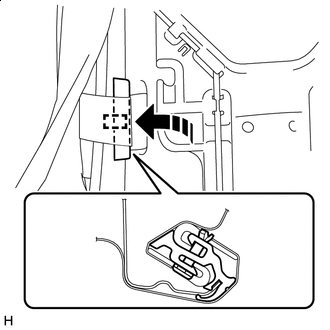

        Engage the hook as shown in the illustration.

    3. B006X75

      Close the 2 fasteners.

    4. w/ Seat Heater System:


      1. B0071BA

        Engage the clamp.

    5. B0071ES

      Engage the 3 hooks.

  29. INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY


    1. B006Z46

      Engage the 4 guides.

    2. Install the separate type front seatback assembly to the separate type front seat cushion assembly with the 4 bolts.

      Torque:
      42 N*m  { 428 kgf*cm, 31 ft.*lbf }

    3. w/ Front Seat Side Airbag:


      1. B006WWZ

        Engage the claw and 4 clamps to install the front seat airbag assembly wire harness.

        Tech Tips

        Engage the claw first.

    4. w/ Seat Heater System:


      1. B0071AB

        Engage the clamp.

      2. Connect the connector.

    5. w/ Lumbar Support:


      1. B007143

        Engage the clamp.

      2. Connect the connector.

    6. B006XYY

      Engage the 2 hooks.

    7. B006XRI

      Pass the separate type front seatback cover through the grooves of the LH seat reclining adjuster inside cover LH and LH seat reclining adjuster inside cover RH.

  30. INSTALL FRONT SEAT INNER CUSHION SHIELD (w/o Vertical Adjuster)


    1. w/ Lower Seat Track Spacer:


      1. B006WYH

        Engage the claw and guide to install the lower No. 4 seat track spacer to the front seat inner cushion shield.

    2. B006WYVC01
      B006ZFL Install in this Direction

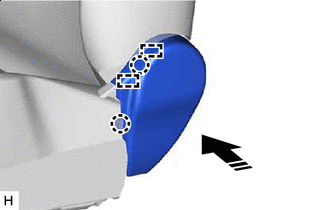

      Engage the 2 claws and 2 guides as shown in the illustration.

    3. B006YT4

      Engage the 3 claws to install the front seat inner cushion shield.

  31. INSTALL FRONT SEAT CUSHION SHIELD (w/o Vertical Adjuster)


    1. w/ Lower Seat Track Spacer:


      1. B0071A2

        Engage the claw and guide to install the lower No. 3 seat track spacer to the front seat cushion shield.

    2. B006ZU3C01
      B006ZFL Install in this Direction (1)
      B006WSJ Install in this Direction (2)

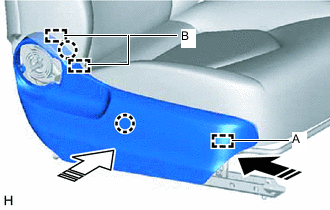

      Engage the guide (A) as shown in the illustration.

    3. Engage the 2 claws and 2 guides (B) as shown in the illustration.

    4. B00713D

      Engage the 2 claws to install the front seat cushion shield.

  32. INSTALL FRONT SEAT INNER CUSHION SHIELD (w/ Vertical Adjuster)


    1. w/ Lower Seat Track Spacer:


      1. B0070V0

        Engage the claw and guide to install the lower No. 2 seat track spacer to the front seat inner cushion shield.

    2. B006WS7C02
      B006ZFL Install in this Direction

      Engage the 2 claws and 2 guides as shown in the illustration.

    3. B00706S

      Engage the 2 claws to install the front seat inner cushion shield.

  33. INSTALL FRONT LUMBAR POWER SEAT SWITCH (w/ Lumbar Support)

    Click here

  34. INSTALL FRONT SEAT CUSHION SHIELD (w/ Vertical Adjuster)


    1. w/ Lower Seat Track Spacer:


      1. B006ZFP

        Engage the claw and guide to install the lower No. 1 seat track spacer to the front seat cushion shield.

    2. w/ Lumbar Support:


      1. B006YOL

        Connect the front lumbar power seat switch connector.

      2. Engage the 2 clamps.

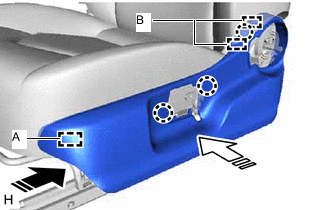

    3. B00716ZC01
      B006ZFL Install in this Direction (1)
      B006WSJ Install in this Direction (2)

      Engage the guide (A) as shown in the illustration.

    4. Engage the 3 claws and 2 guides (B) as shown in the illustration.

    5. B006YGR

      Engage the 2 claws to install the front seat cushion shield.

  35. INSTALL SEAT ADJUSTER COVER CAP (w/ Vertical Adjuster)

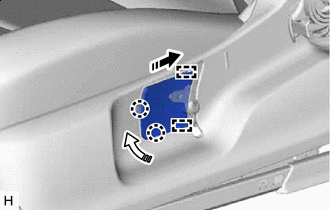

    1. B00718GC01
      B006ZFL Install in this Direction (1)
      B006WSJ Install in this Direction (2)

      Engage the 2 guides as shown in the illustration.

    2. Engage the 2 claws to install the seat adjuster cover cap as shown in the illustration.

  36. INSTALL RECLINING ADJUSTER RELEASE HANDLE


    1. B006WZO

      Install the reclining adjuster release handle.

  37. INSTALL RECLINING HINGE COVER

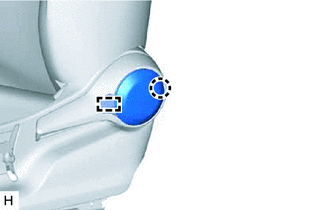

    1. B006X4I

      Engage the guide.

    2. Engage the claw to install the reclining hinge cover.

  38. INSTALL VERTICAL ADJUSTING HANDLE (w/ Vertical Adjuster)


    1. B0071VEC01
      B006ZFL Install in this Direction

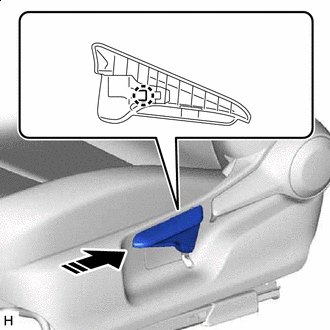

      Engage the claw to install the vertical adjusting handle as shown in the illustration.

  39. CONNECT SEPARATE TYPE FRONT SEATBACK COVER


    1. B007051

      Connect the rubber band of the separate type front seatback cover.

  40. INSTALL FRONT SEAT INNER BELT ASSEMBLY (for Front Passenger Side)

    Click here

  41. INSTALL FRONT SEAT INNER BELT ASSEMBLY (for Driver Side)

    Click here

  42. INSTALL OCCUPANT DETECTION ECU (w/ Occupant Classification System)

    Click here
