PRE-COLLISION SYSTEM PARTS LOCATION

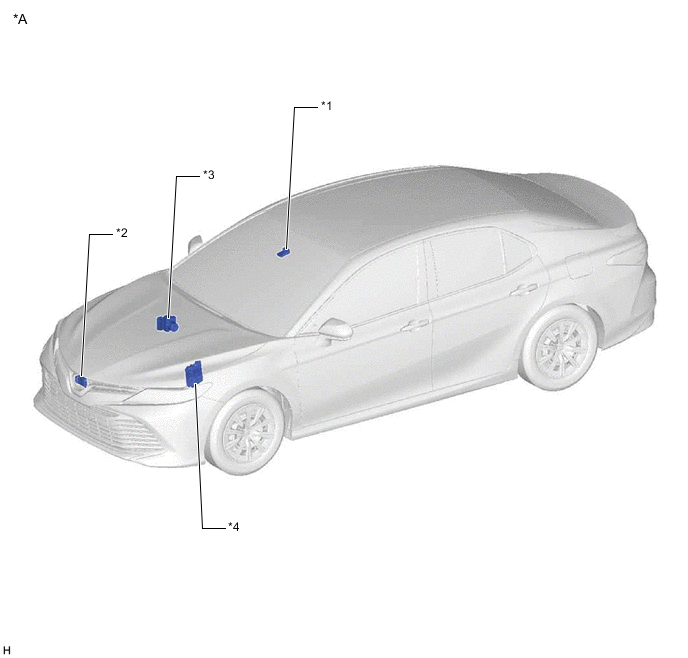

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | FORWARD RECOGNITION CAMERA | *2 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *3 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
*4 | ECM |

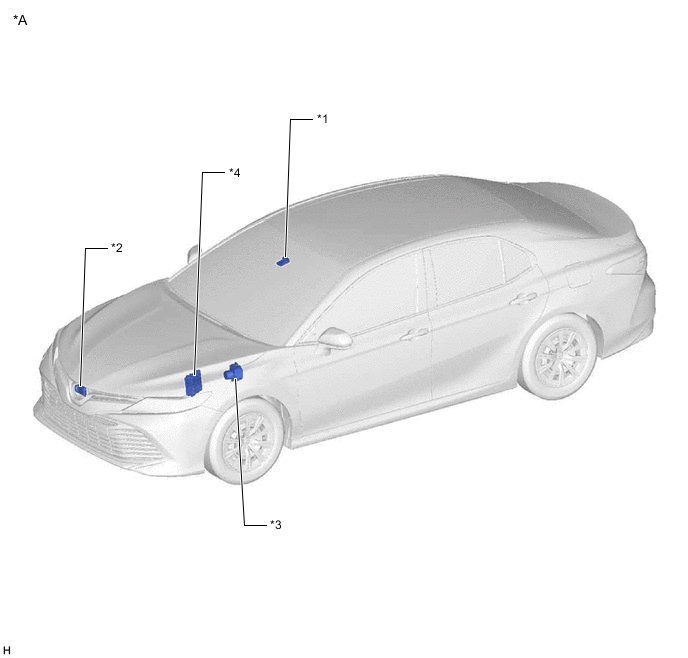

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | FORWARD RECOGNITION CAMERA | *2 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *3 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
*4 | ECM |

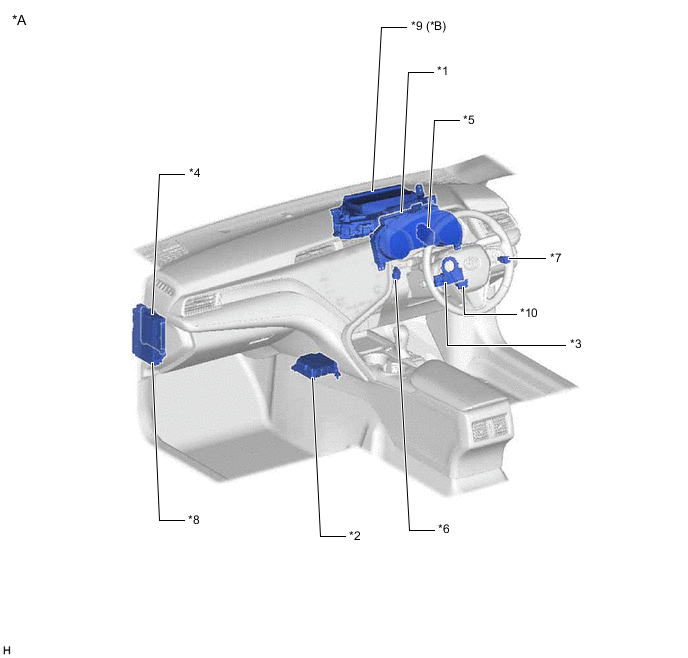

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | COMBINATION METER ASSEMBLY - MULTI-INFORMATION DISPLAY - PCS WARNING LIGHT - PCS WARNING BUZZER |
*2 | AIRBAG SENSOR ASSEMBLY - YAW RATE SENSOR |
| *3 | STEERING SENSOR | *4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) | *6 | STOP LIGHT SWITCH ASSEMBLY |
| *7 | VSC OFF SWITCH | *8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 3 |
| *9 | DLC3 | - | - |
ILLUSTRATION
| *A | for RHD | *B | w/ Headup Display System |
| *1 | COMBINATION METER ASSEMBLY - MULTI-INFORMATION DISPLAY - PCS WARNING LIGHT - PCS WARNING BUZZER |
*2 | AIRBAG SENSOR ASSEMBLY - YAW RATE SENSOR |
| *3 | STEERING SENSOR | *4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) | *6 | STOP LIGHT SWITCH ASSEMBLY |
| *7 | VSC OFF SWITCH | *8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 3 |
| *9 | HEADUP DISPLAY (METER MIRROR SUB-ASSEMBLY) | *10 | DLC3 |
