ROOM LIGHT INSTALLATION

PROCEDURE


  1. INSTALL REAR ROOM LIGHT BULB (for Bulb Type)


    1. Install the rear room light bulb to the room light switch base.

  2. INSTALL ROOM LIGHT ASSEMBLY (for Bulb Type)

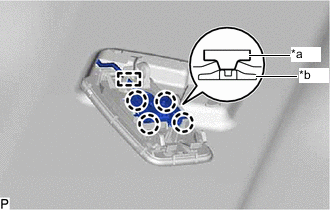

    1. B0071JBC01
      *a Switch Part of Room Light Switch Base
      *b Switch Part of Room Light Housing

      Align the switch parts as shown in the illustration and engage the 4 claws to install the room light switch base to the room light housing.

    2. Engage the clamp.

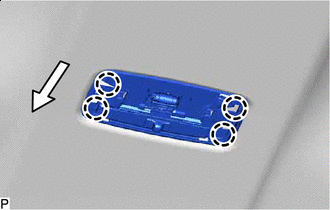

    3. B006ZW9C01
      B006ZY0 Front

      Engage the 4 claws to install the room light housing.

    4. B006YLYC01
      B006ZY0 Front

      Engage the 4 claws to install the room light lens.

  3. INSTALL SPOT LIGHT ASSEMBLY (for LED Type)


    1. Connect the connector.

    2. B007185C01
      B006ZY0 Front

      Engage the 8 claws to install the spot light assembly.
