POWER DOOR LOCK CONTROL SYSTEM PARTS LOCATION
ILLUSTRATION
| *A | for LHD | *B | w/o Smart Entry and Start System |
| *C | w/ Canister Pump Module | - | - |
| *1 | DOOR CONTROL SWITCH ASSEMBLY | *2 | UNLOCK WARNING SWITCH ASSEMBLY |
| *3 | DLC3 | *4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 4 FUSE - ECU-ACC FUSE - ECU-DCC NO. 2 FUSE - ALL DR LOCK RELAY - L/D-DR UNLOCK RELAY - D-DR UNLOCK RELAY |
*6 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY - DOOR CONTROL SWITCH |
| *7 | AIRBAG SENSOR ASSEMBLY | - | - |

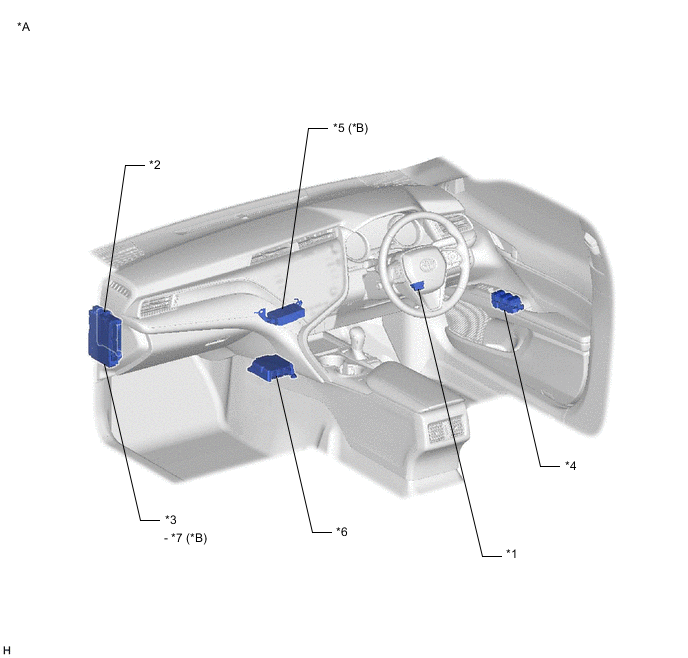

ILLUSTRATION
| *A | for RHD | *B | w/ Door Control Battery |
| *1 | DLC3 | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 4 FUSE - ECU-ACC FUSE - ECU-DCC NO. 2 FUSE - ALL DR LOCK RELAY - L/D-DR UNLOCK RELAY - D-DR UNLOCK RELAY |
*4 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY - DOOR CONTROL SWITCH |
| *5 | DOOR CONTROL BATTERY | *6 | AIRBAG SENSOR ASSEMBLY |
| *7 | D/L FUSE | - | - |
ILLUSTRATION
| *A | for LHD | *B | for RHD |
| *1 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
| *3 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH | *4 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *5 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *6 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
| *7 | REAR DOOR LOCK WITH MOTOR ASSEMBLY LH | *8 | REAR DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *9 | DOOR KEY LOCK AND UNLOCK SWITCH | *10 | DOOR LOCK MOTOR |
| *11 | DOOR UNLOCK DETECTION SWITCH | - | - |
