TELEVISION CAMERA INSTALLATION

PROCEDURE


  1. INSTALL REAR TELEVISION CAMERA ASSEMBLY

  2. INSTALL TELEVISION CAMERA WIRE


    1. Connect the connector to install the television camera wire.

  3. INSTALL REAR TELEVISION CAMERA ASSEMBLY WITH WIRE

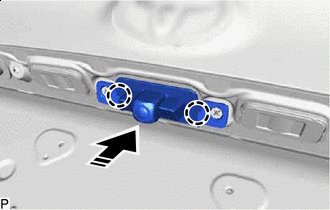

    1. B004O7IC01
      B006ZFL Install in this Direction

      Engage the 2 claws to install the rear television camera assembly with wire as shown in the illustration.

    2. Engage the clamp.

    3. Connect the connector.

  4. INSTALL LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Click here

  5. PERFORM CALIBRATION (w/ Parking Assist Monitor System)

    Click here
