TELEVISION CAMERA REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear television camera assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function When Necessary Procedures are not Performed Link
Rear television camera assembly (w/ Parking assist monitor system)

  • Parking assist monitor system initialization

  • Rear television camera assembly optical axis (Back camera position setting)

 Parking assist monitor system

Click here

PROCEDURE


  1. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Click here

  2. REMOVE REAR TELEVISION CAMERA ASSEMBLY WITH WIRE


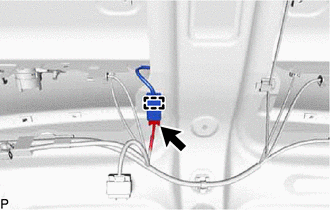

    1. B004OA1

      Disconnect the connector.

    2. Disengage the clamp.

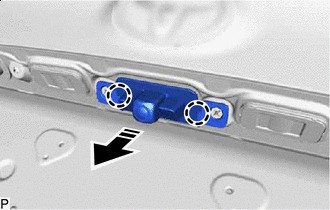

    3. B004J3XC01
      B006ZFL Remove in this Direction

      Disengage the 2 claws to remove the rear television camera assembly with wire as shown in the illustration.

  3. REMOVE TELEVISION CAMERA WIRE


    1. B004O0W

      Disconnect the connector to remove the television camera wire.

  4. REMOVE REAR TELEVISION CAMERA ASSEMBLY
