ULTRASONIC SENSOR(for Rear) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during ultrasonic sensor removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function When Necessary Procedures are not Performed Link
Replacement of ultrasonic sensor Adjust TOYOTA parking assist-sensor system TOYOTA parking assist-sensor system

Click here

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE


  1. REMOVE REAR BUMPER ASSEMBLY

    Click here

  2. REMOVE REAR CORNER ULTRASONIC SENSOR

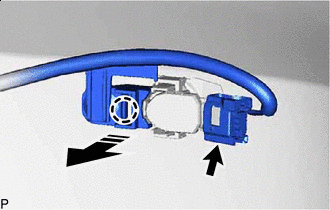

    1. B0070FKC01
      B006ZFL Remove in this Direction

      Disconnect the connector.

    2. Disengage the claw as shown in the illustration.

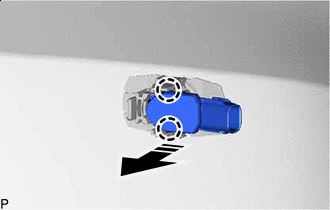

    3. B0071M8C01
      B006ZFL Remove in this Direction

      Disengage the 2 claws and remove the rear corner ultrasonic sensor as shown in the illustration.

  3. REMOVE ULTRASONIC SENSOR CLIP

    Tech Tips

    Perform this procedure only when replacement of the ultrasonic sensor clip is necessary.


    1. B004KDJ

      Disengage the clamp to remove the ultrasonic sensor clip from the wire.

  4. REMOVE REAR CORNER ULTRASONIC SENSOR RETAINER

    Tech Tips


    • Perform this procedure only when replacement of the rear corner ultrasonic sensor retainer is necessary.

    • When removing the rear corner ultrasonic sensor retainer, heat the rear bumper assembly and rear corner ultrasonic sensor retainer using a heat light.


    1. Heat the rear bumper assembly and rear corner ultrasonic sensor retainer using a heat light at the specified temperature for 3 to 5 minutes.

      Heating Temperature
      Item Temperature
      Rear Bumper Assembly 40 to 60°C (104 to 140°F)
      Rear Corner Ultrasonic Sensor Retainer

      CAUTION:


      • Do not touch the heat light and heated parts.

      • Touching the heat light may result in burns.

      • Touching heated parts for a long time may result in burns.

      B0070ZSC23
      *a Heated Part
      *b Heat Light

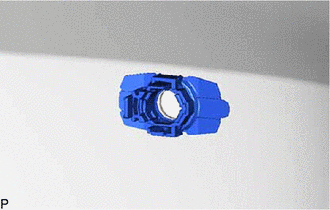

    2. B004MAP

      Remove the rear corner ultrasonic sensor retainer.
