ULTRASONIC SENSOR(for Front) INSTALLATION

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE


  1. INSTALL FRONT CORNER ULTRASONIC SENSOR RETAINER

    Tech Tips


    • Perform this procedure only when replacement of the front corner ultrasonic sensor retainer is necessary.

    • If a front corner ultrasonic sensor retainer has been removed, replace it with a new one. Install the front corner ultrasonic sensor with a new front corner ultrasonic sensor retainer as a set to the front bumper assembly.

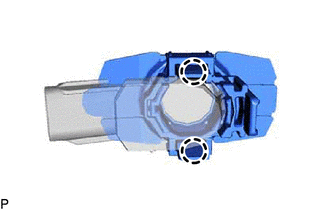

    1. B004M3A

      Engage the 2 claws to install a new front corner ultrasonic sensor retainer to the front corner ultrasonic sensor.

    2. Clean the surface of the front bumper assembly.


      1. Remove any remaining double-sided tape from the front bumper assembly.

      2. Wipe off any adhesive residue with cleaner.

    3. B004NBWC01
      *a 19 mm (0.748 in.)

      Cover the sensor installation hole with a 19 mm (0.748 in.) circular piece of tape.

    4. for Bar Type Radiator Grille:

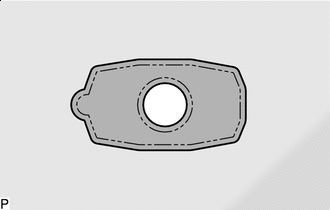

      1. B004NO0C01
        B006XDP Primer

        Using a brush or felt, apply primer or equivalent to the front corner ultrasonic sensor retainer installation area.

        Note


        • Use a clean brush or felt.

        • Do not touch the front bumper assembly until the primer has dried.

    5. Mesh Type Radiator Grille:

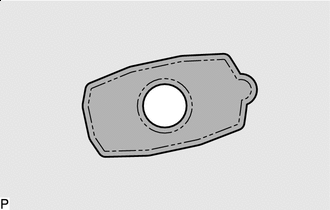

      1. B004OC2C01
        B006XDP Primer

        Using a brush or felt, apply primer or equivalent to the front corner ultrasonic sensor retainer installation area.

        Note


        • Use a clean brush or felt.

        • Do not touch the front bumper assembly until the primer has dried.

    6. Confirm that the primer has completely dried by touching the front bumper assembly. Then remove the tape.

    7. Peel off the release paper from the front corner ultrasonic sensor retainer.

    8. for Bar Type Radiator Grille:

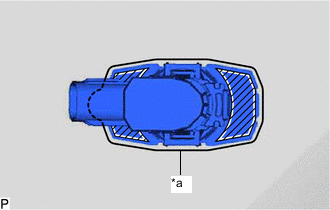

      1. B004I1JC01
        *a Scribed Line
        B006Y8C Press area

        Align the front corner ultrasonic sensor retainer with front corner ultrasonic sensor with the mark on the front bumper assembly and install it as shown in the illustration.

        Note


        • Ensure that the sensor tip is correctly inserted into the sensor installation hole of the front bumper assembly.

        • Ensure that the front corner ultrasonic sensor retainer is within the scribed line.

        • The double-sided tape of a front corner ultrasonic sensor retainer will deteriorate if it is detached. Make sure to replace the front corner ultrasonic sensor retainer with a new one when reattachment is necessary.

        Tech Tips

        Press the area shown in the illustration with a force of 30 N (3.0 kgf) for 3 seconds to securely install the front corner ultrasonic sensor retainer to the front bumper assembly. Confirm there is no clearance between the front corner ultrasonic sensor retainer and front bumper assembly.

    9. Mesh Type Radiator Grille:

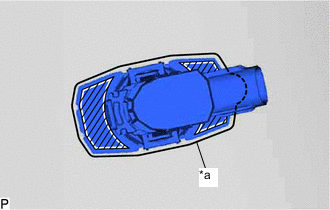

      1. B004K5KC01
        *a Scribed Line
        B006Y8C Press area

        Align the front corner ultrasonic sensor retainer with front corner ultrasonic sensor with the mark on the front bumper assembly and install it as shown in the illustration.

        Note


        • Ensure that the sensor tip is correctly inserted into the sensor installation hole of the front bumper assembly.

        • Ensure that the front corner ultrasonic sensor retainer is within the scribed line.

        • The double-sided tape of a front corner ultrasonic sensor retainer will deteriorate if it is detached. Make sure to replace the front corner ultrasonic sensor retainer with a new one when reattachment is necessary.

        Tech Tips

        Press the area shown in the illustration with a force of 30 N (3.0 kgf) for 3 seconds to securely install the front corner ultrasonic sensor retainer to the front bumper assembly. Confirm there is no clearance between the front corner ultrasonic sensor retainer and front bumper assembly.

  2. INSTALL ULTRASONIC SENSOR CLIP (for Bar Type Radiator Grille)

    Tech Tips

    Perform this procedure only when replacement of the ultrasonic sensor clip is necessary.

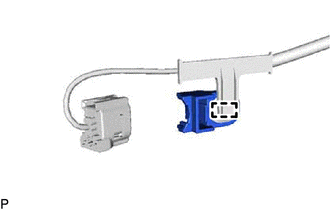

    1. B004K8D

      Engage the clamp to install the ultrasonic sensor clip to the wire.

  3. INSTALL FRONT CORNER ULTRASONIC SENSOR


    1. for Bar Type Radiator Grille:

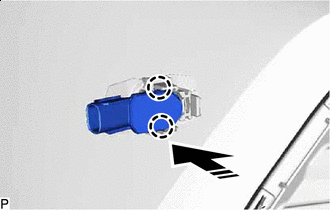

      1. B004L5GC01
        B006ZFL Install in this Direction

        When replacing only the front center ultrasonic sensor:


        1. Engage the 2 claws to install the front corner ultrasonic sensor as shown in the illustration.

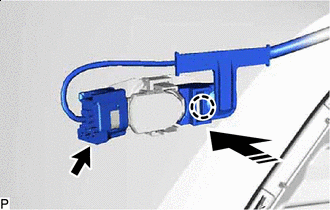

      2. B004JC4C01
        B006ZFL Install in this Direction

        Engage the claw as shown in the illustration.

      3. Connect the connector.

    2. for Mesh Type Radiator Grille:

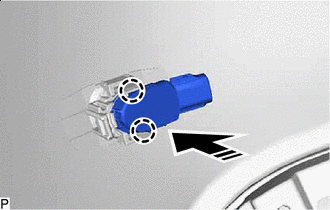

      1. B004NV4C01
        B006ZFL Install in this Direction

        When replacing only the front center ultrasonic sensor:


        1. Engage the 2 claws to install the front corner ultrasonic sensor as shown in the illustration.

      2. Connect the connector.

  4. INSTALL FRONT BUMPER ASSEMBLY

    Click here

  5. PERFORM CALIBRATION

    Click here
