CLEARANCE WARNING BUZZER(for LHD) REMOVAL

Click here

PROCEDURE

1. Click here

   CHANGE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM SETTINGS (for Power Tilt and Power Telescopic Steering Column)

   Click here

2. Click here

   REMOVE NO. 1 METER HOOD CLUSTER

   Click here

3. Click here

   REMOVE NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

   Click here

4. Click here

   REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

   Click here

5. Click here

   REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY

   Click here

6. Click here

   REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET

   Click here

7. Click here

   REMOVE NO. 1 CLEARANCE WARNING BUZZER

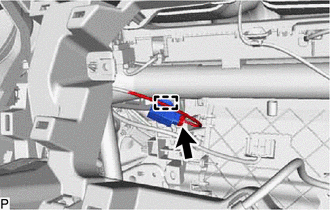

   1.

      Disengage the clamp.

   2. Disconnect the connector to remove the No. 1 clearance warning buzzer.
