BLIND SPOT MONITOR SYSTEM PARTS LOCATION
ILLUSTRATION

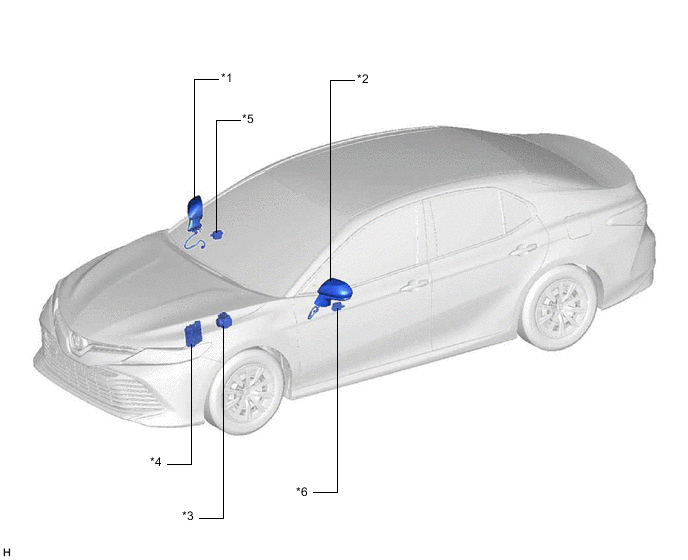

| *1 | OUTER REAR VIEW MIRROR ASSEMBLY WITH COVER RH | *2 | OUTER REAR VIEW MIRROR ASSEMBLY WITH COVER LH |
| *3 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
*4 | ECM |
| *5 | OUTER MIRROR CONTROL ECU ASSEMBLY RH | *6 | OUTER MIRROR CONTROL ECU ASSEMBLY LH |
ILLUSTRATION

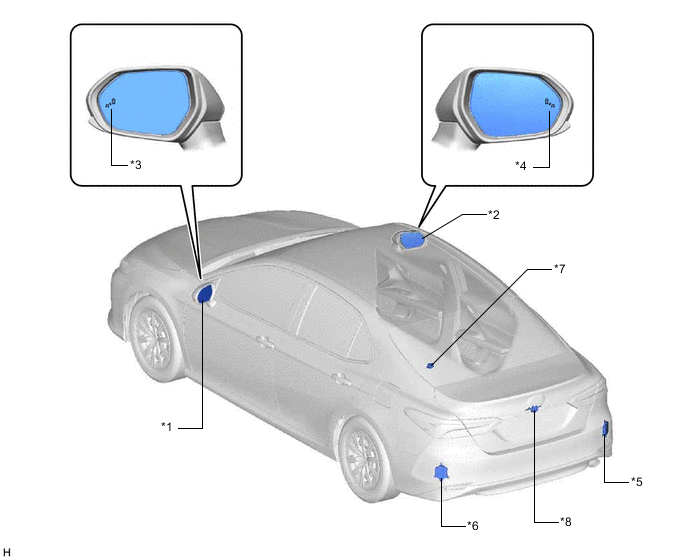

| *1 | OUTER MIRROR LH | *2 | OUTER MIRROR RH |
| *3 | OUTER REAR VIEW MIRROR INDICATOR LH | *4 | OUTER REAR VIEW MIRROR INDICATOR RH |
| *5 | BLIND SPOT MONITOR SENSOR RH (MASTER) | *6 | BLIND SPOT MONITOR SENSOR LH (SLAVE) |
| *7 | RCTA BUZZER (BLIND SPOT MONITOR BUZZER) | *8 | REAR TELEVISION CAMERA ASSEMBLY |
ILLUSTRATION

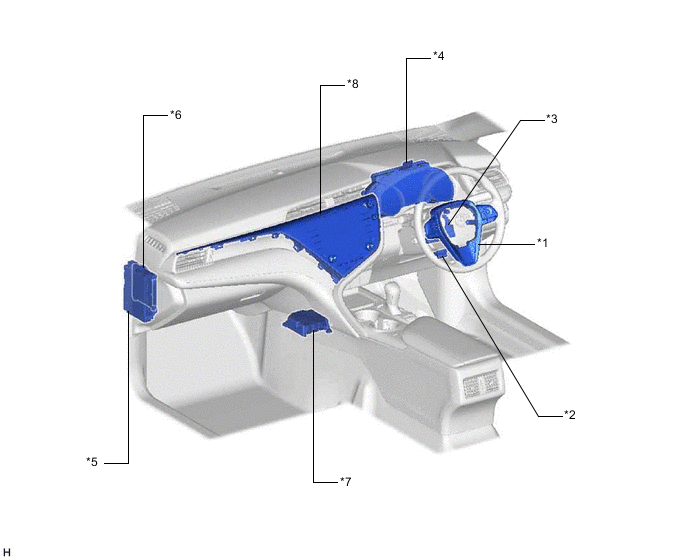

| *1 | STEERING PAD SWITCH ASSEMBLY | *2 | DLC3 |
| *3 | STEERING SENSOR | *4 | COMBINATION METER ASSEMBLY |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 4 FUSE - IG1-NO. 1 RELAY |
*6 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *7 | AIRBAG SENSOR ASSEMBLY - YAW RATE AND ACCELERATION SENSOR |
*8 | RADIO AND DISPLAY RECEIVER ASSEMBLY - MULTI-DISPLAY |
