REAR VIEW MONITOR SYSTEM PARTS LOCATION

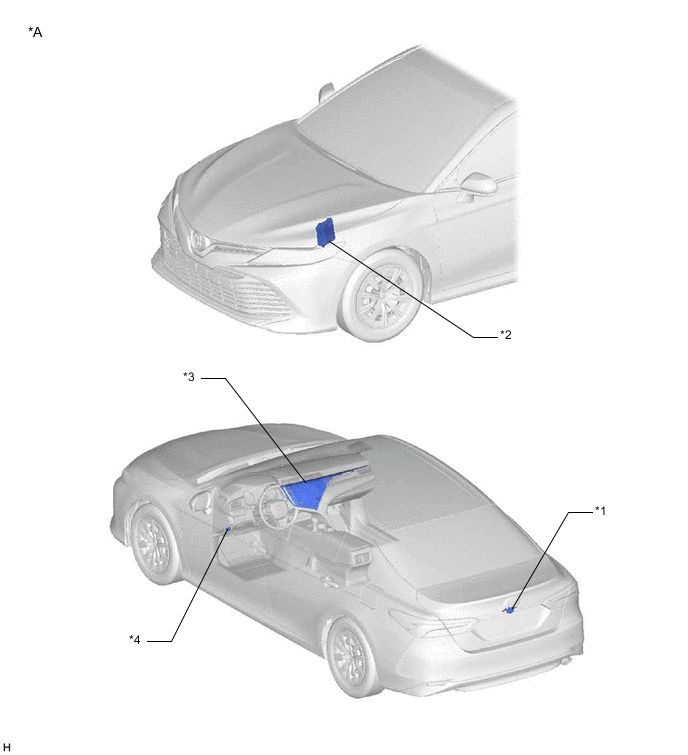

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | REAR TELEVISION CAMERA ASSEMBLY | *2 | ECM |
| *3 | RADIO AND DISPLAY RECEIVER ASSEMBLY | *4 | DLC3 |
ILLUSTRATION
| *A | for RHD | - | - |
| *1 | REAR TELEVISION CAMERA ASSEMBLY | *2 | ECM |
| *3 | RADIO AND DISPLAY RECEIVER ASSEMBLY | *4 | DLC3 |
