CLEARANCE WARNING ECU(for RHD) INSTALLATION

PROCEDURE

1. INSTALL CLEARANCE WARNING ECU ASSEMBLY




   1.

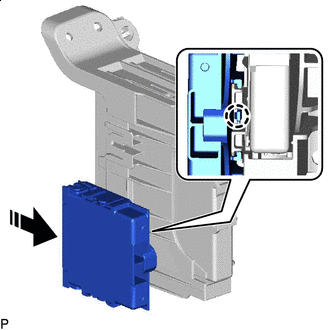

      Install in this Direction

      Engage the claw to install the clearance warning ECU assembly as shown in the illustration.

2. INSTALL ECU INTEGRATION BOX RH

   Click here

3. INSTALL NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY

   Tech Tips

   Use the same procedure as for LHD.

   Click here

4. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

   Tech Tips

   Use the same procedure as for LHD.

   Click here

5. PERFORM CALIBRATION

   Click here
