CLEARANCE WARNING ECU(for RHD) COMPONENTS

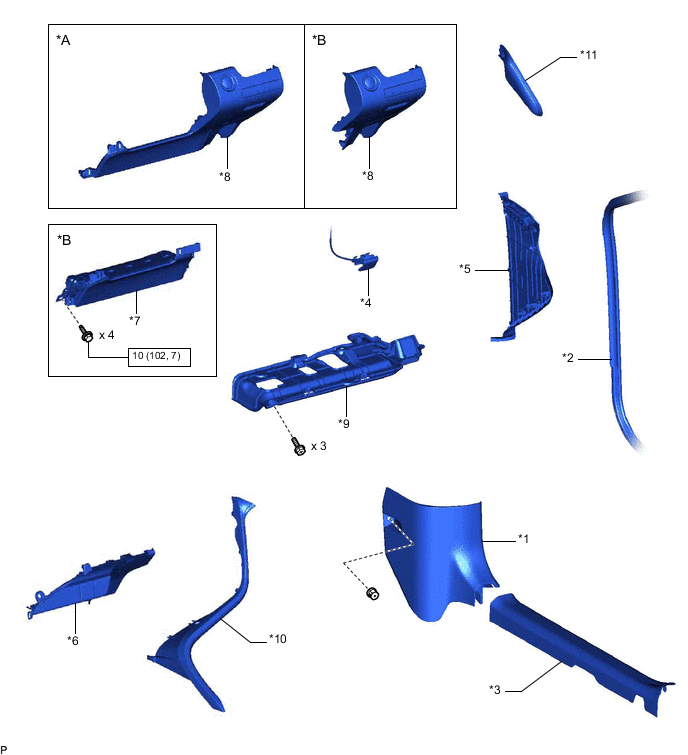

ILLUSTRATION
| *A | w/o Driver Side Knee Airbag | *B | w/ Driver Side Knee Airbag |
| *1 | COWL SIDE TRIM SUB-ASSEMBLY RH | *2 | FRONT DOOR OPENING TRIM WEATHERSTRIP RH |
| *3 | FRONT DOOR SCUFF PLATE RH | *4 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY |
| *5 | INSTRUMENT SIDE PANEL RH | *6 | LOWER CENTER INSTRUMENT PANEL FINISH PANEL |
| *7 | LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY | *8 | NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY |
| *9 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | *10 | NO. 1 METER HOOD CLUSTER |
| *11 | NO. 2 METER HOOD CLUSTER | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

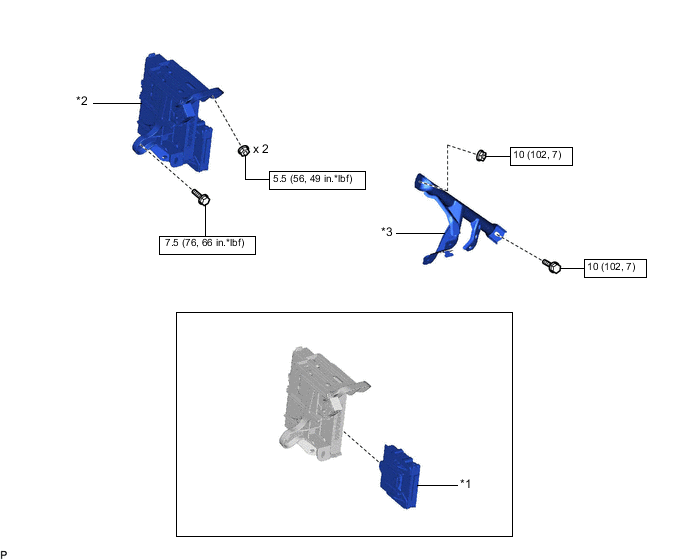

ILLUSTRATION
| *1 | CLEARANCE WARNING ECU ASSEMBLY | *2 | ECU INTEGRATION BOX RH |
| *3 | NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
