CLEARANCE WARNING ECU(for LHD) INSTALLATION

PROCEDURE

1. INSTALL CLEARANCE WARNING ECU ASSEMBLY




   1.

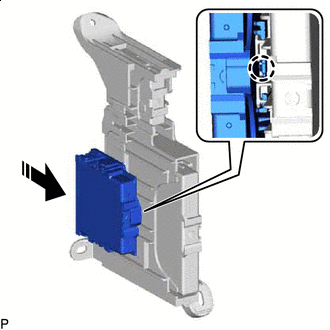

      Install in this Direction

      Engage the claw to install the clearance warning ECU assembly as shown in the illustration.

2. INSTALL ECU INTEGRATION BOX RH

   Click here

3. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY (w/o Passenger Side Knee Airbag)

   Click here

4. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY (w/ Passenger Side Knee Airbag)

   Click here

5. INSTALL LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY (w/ Passenger Side Knee Airbag)

   Click here

6. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

   Click here

7. INSTALL INSTRUMENT SIDE PANEL RH

   Click here

8. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

   Tech Tips

   Use the same procedure as for the LH side.

   Click here

9. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH

   Tech Tips

   Use the same procedure as for the LH side.

   Click here

10. INSTALL FRONT DOOR SCUFF PLATE RH

    Tech Tips

    Use the same procedure as for the LH side.

    Click here

11. INSTALL INSTRUMENT PANEL FINISH PLATE GARNISH

    Click here

12. INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

    Click here

13. INSTALL NO. 1 METER HOOD CLUSTER

    Click here

14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    for 2AR-FE:

    Click here

    for A25A-FKS:

    Click here

    for 2GR-FKS:

    Click here

15. PERFORM DIAGNOSTIC SYSTEM CHECK (w/ Passenger Side Knee Airbag)

    Click here

16. INSPECT SRS WARNING LIGHT (w/ Passenger Side Knee Airbag)

    Click here

17. PERFORM CALIBRATION

    Click here
