CLEARANCE WARNING ECU(for LHD) COMPONENTS

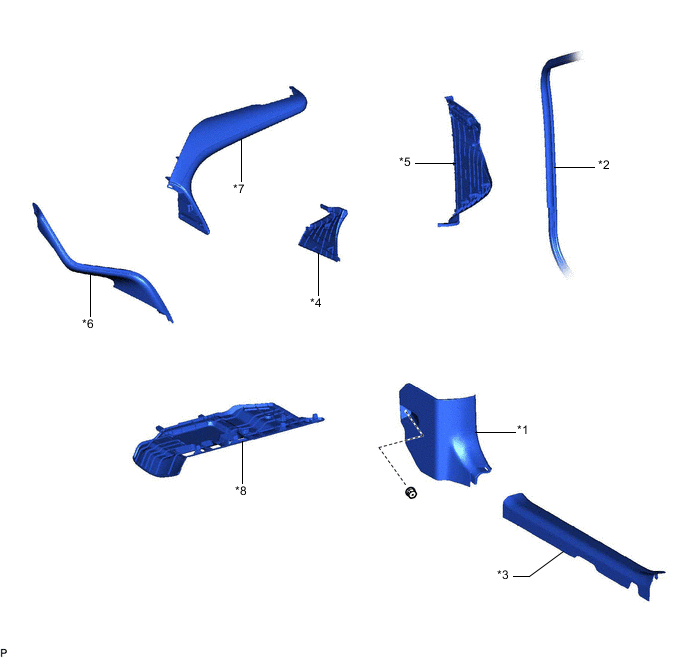

ILLUSTRATION
| *1 | COWL SIDE TRIM SUB-ASSEMBLY RH | *2 | FRONT DOOR OPENING TRIM WEATHERSTRIP RH |
| *3 | FRONT DOOR SCUFF PLATE RH | *4 | INSTRUMENT PANEL FINISH PLATE GARNISH |
| *5 | INSTRUMENT SIDE PANEL RH | *6 | NO. 1 METER HOOD CLUSTER |
| *7 | NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY | *8 | NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |

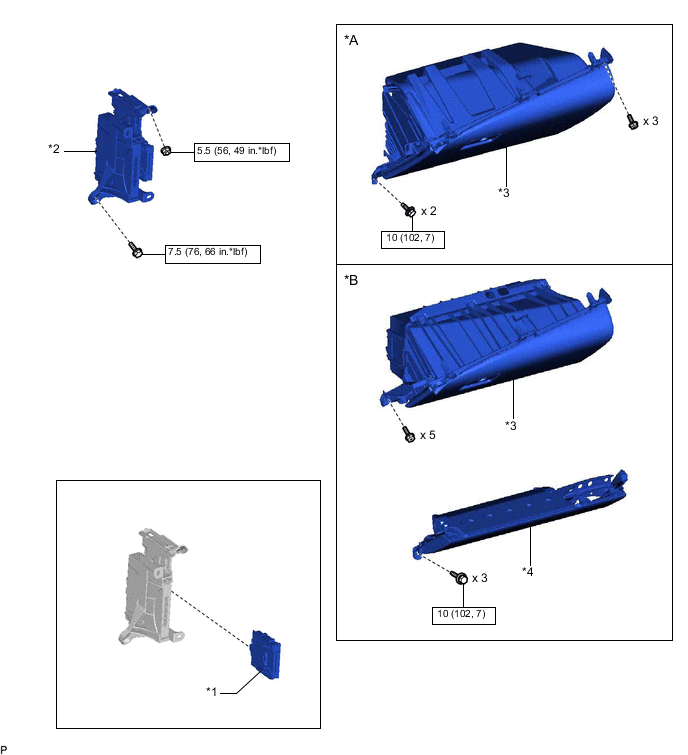

ILLUSTRATION
| *A | w/o Passenger Side Knee Airbag | *B | w/ Passenger Side Knee Airbag |
| *1 | CLEARANCE WARNING ECU ASSEMBLY | *2 | ECU INTEGRATION BOX RH |
| *3 | LOWER INSTRUMENT PANEL SUB-ASSEMBLY | *4 | LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
