BLIND SPOT MONITOR SYSTEM Power Source Circuit

DESCRIPTION

This circuit provides power to operate the blind spot monitor sensor.

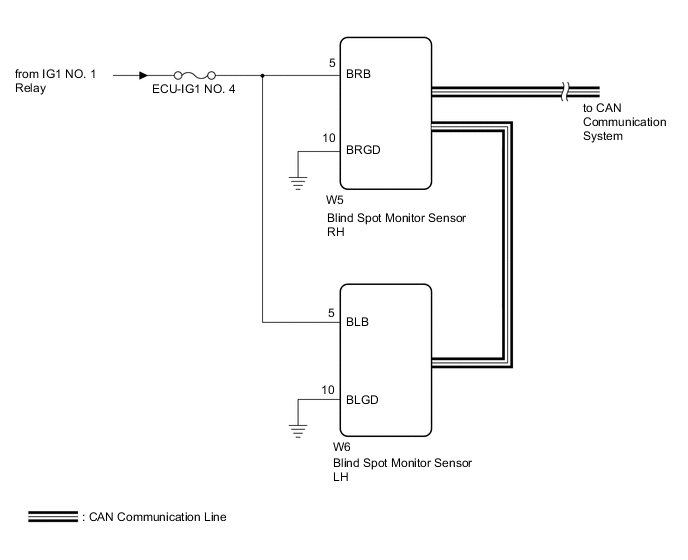

WIRING DIAGRAM

B004I5LE64

CAUTION / NOTICE / HINT

Note

Inspect the fuses for circuits related to this system before performing the following procedure.

PROCEDURE


  1. CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR RH POWER SOURCE)


    1. Disconnect the W5 blind spot monitor sensor RH connector.

    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition
      W5-5 (BRB) - Body ground Engine switch on (IG) 11 to 14 V
      W5-5 (BRB) - Body ground Engine switch off Below 1 V
      Result
      Proceed to
      OK
      NG

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  2. CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR RH - BODY GROUND)


    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      W5-10 (BRGD) - Body ground Always Below 1 Ω
      Result
      Proceed to
      OK
      NG

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  3. CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR LH POWER SOURCE)


    1. Disconnect the W6 blind spot monitor sensor LH connector.

    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition
      W6-5 (BLB) - Body ground Engine switch on (IG) 11 to 14 V
      W6-5 (BLB) - Body ground Engine switch off Below 1 V
      Result
      Proceed to
      OK
      NG

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  4. CHECK HARNESS AND CONNECTOR (BLIND SPOT MONITOR SENSOR LH - BODY GROUND)


    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      W6-10 (BLGD) - Body ground Always Below 1 Ω
      Result
      Proceed to
      OK
      NG

    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
