TOYOTA PARKING ASSIST-SENSOR SYSTEM SYSTEM DIAGRAM

Click here
Click here
Click here

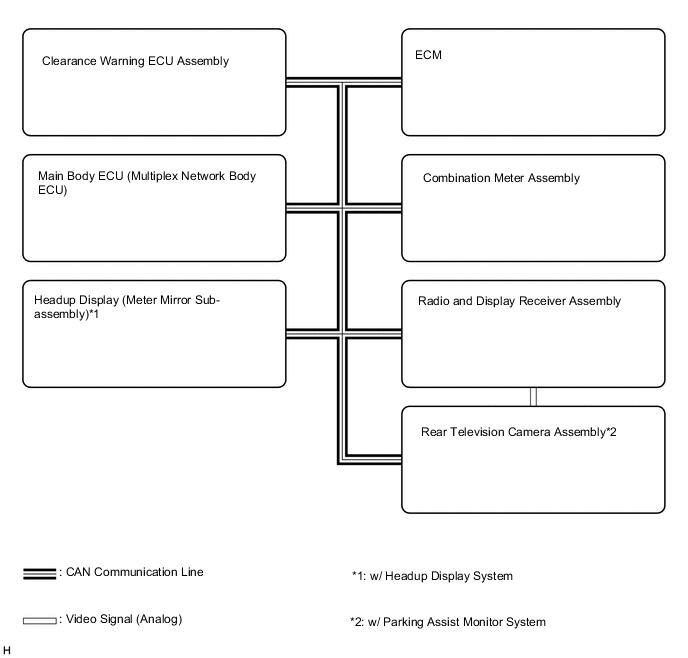

  1. B004HK3E03

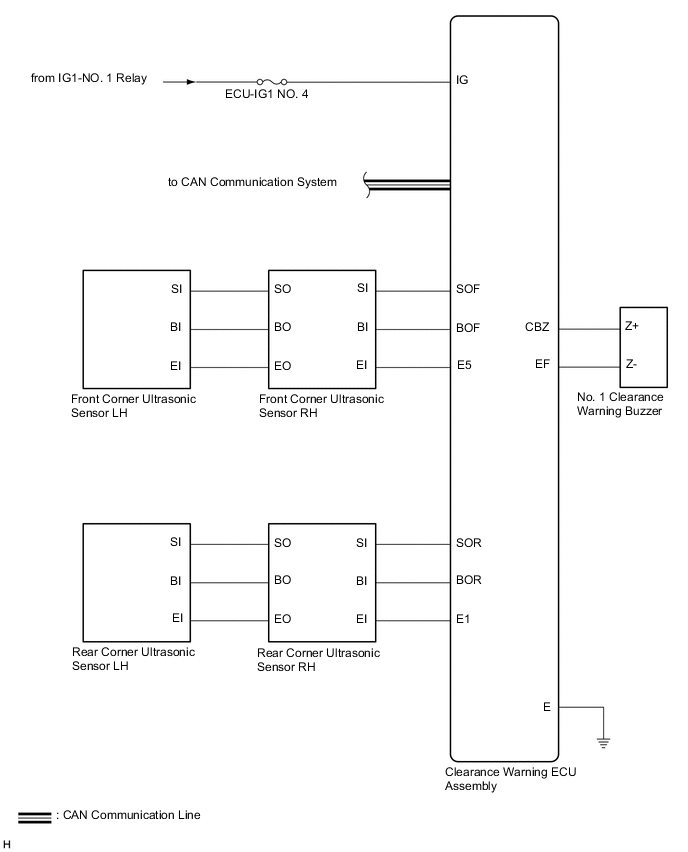

    B004J6WE01
    Table 1. Communication Table
    Sender Receiver Signal Line

    Main Body ECU

    (Multiplex Network Body ECU)

    Clearance Warning ECU Assembly Destination information signal CAN Communication Line
    ECM Clearance Warning ECU Assembly Shift position signal CAN Communication Line
    Combination Meter Assembly Clearance Warning ECU Assembly Vehicle speed signal CAN Communication Line
    Clearance Warning ECU Assembly Combination Meter Assembly
    • Sonar information signal

    • Clearance sonar indicator illumination request signal

    CAN Communication Line
    Clearance Warning ECU Assembly Rear Television Camera Assembly*1 Sonar information signal CAN Communication Line
    Rear Television Camera Assembly*1 Radio and Display Receiver Assembly Video signal Analog
    Clearance Warning ECU Assembly Headup Display (Meter Mirror Sub-assembly)*2 Sonar information signal CAN Communication Line

    • *1: w/ Parking Assist Monitor System

    • *2: w/ Headup Display System
