TOYOTA PARKING ASSIST-SENSOR SYSTEM PARTS LOCATION

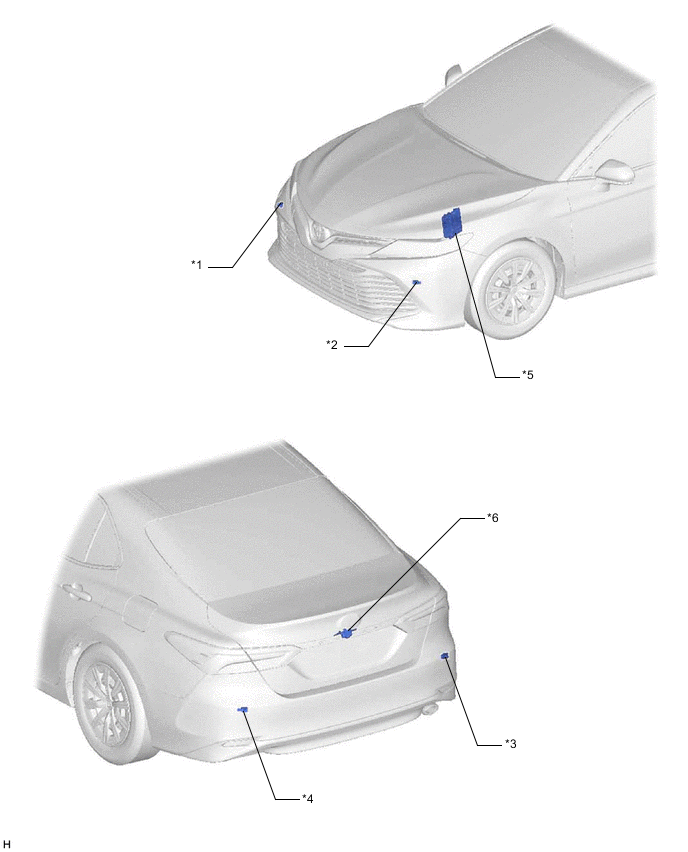

ILLUSTRATION
| *1 | FRONT CORNER ULTRASONIC SENSOR RH | *2 | FRONT CORNER ULTRASONIC SENSOR LH |
| *3 | REAR CORNER ULTRASONIC SENSOR RH | *4 | REAR CORNER ULTRASONIC SENSOR LH |
| *5 | ECM | *6 | REAR TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System) |
ILLUSTRATION
| *A | for LHD | - | - |
| *1 | CLEARANCE SONAR INDICATOR | *2 | MULTI-INFORMATION DISPLAY |
| *3 | CLEARANCE WARNING ECU ASSEMBLY | *4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 4 FUSE |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | RADIO AND DISPLAY RECEIVER ASSEMBLY - MULTI-DISPLAY |
| *7 | NO. 1 CLEARANCE WARNING BUZZER | *8 | COMBINATION METER ASSEMBLY |
| *9 | DLC3 | *10 | STEERING PAD SWITCH ASSEMBLY |
| *11 | HEADUP DISPLAY (METER MIRROR SUB-ASSEMBLY)(w/ Headup Display System) | - | - |
ILLUSTRATION
| *A | for RHD | - | - |
| *1 | CLEARANCE SONAR INDICATOR | *2 | MULTI-INFORMATION DISPLAY |
| *3 | CLEARANCE WARNING ECU ASSEMBLY | *4 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 4 FUSE |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | RADIO AND DISPLAY RECEIVER ASSEMBLY - MULTI-DISPLAY |
| *7 | NO. 1 CLEARANCE WARNING BUZZER | *8 | COMBINATION METER ASSEMBLY |
| *9 | DLC3 | *10 | STEERING PAD SWITCH ASSEMBLY |
| *11 | HEADUP DISPLAY (METER MIRROR SUB-ASSEMBLY)(w/ Headup Display System) | - | - |
