ANTENNA CORD REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during antenna cord sub-assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function When Necessary Procedures are not Performed Link
Disconnect cable from negative battery terminal Perform steering sensor zero point calibration Lane departure alert system (w/ Steering Control)

Click here

Pre-collision system
Memorize steering angle neutral point Parking assist monitor system

Click here

CAUTION:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

Click here

B0071E9

PROCEDURE


  1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

    Click here

  2. REMOVE NO. 3 HEATER TO REGISTER DUCT SUB-ASSEMBLY

    Click here

  3. REMOVE ANTENNA CORD SUB-ASSEMBLY

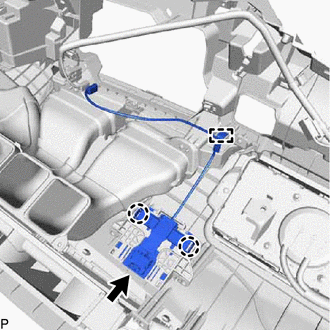

    1. B006YFZ

      Disconnect the connector.

    2. Disengage the 2 claws.

    3. Disengage the clamp to remove the antenna cord sub-assembly.

  4. REMOVE ROOF HEADLINING ASSEMBLY (w/ Television Antenna)

    Click here

  5. REMOVE NO. 3 ANTENNA CORD SUB-ASSEMBLY (w/ Television Antenna)

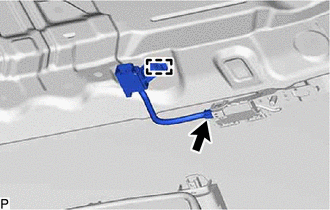

    1. B006XRQ

      Disconnect the connector.

    2. Disengage the clamp to remove the No. 3 antenna cord sub-assembly.
