TELEVISION ANTENNA REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during television antenna assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function When Necessary Procedures are not Performed Link
Disconnect cable from negative battery terminal Perform steering sensor zero point calibration Lane departure alert system (w/ Steering Control)

Click here

Pre-collision system
Memorize steering angle neutral point Parking assist monitor system

Click here

CAUTION:

Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing.

Click here

B0071E9

PROCEDURE


  1. REMOVE ROOF HEADLINING ASSEMBLY

    Click here

  2. REMOVE TELEVISION ANTENNA ASSEMBLY

    Note

    Do not touch the contact points.

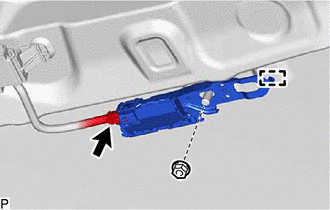

    1. B006YBO

      Disconnect the connector.

    2. Remove the nut.

    3. Disengage the guide to remove the television antenna assembly.
