NAVIGATION ECU COMPONENTS

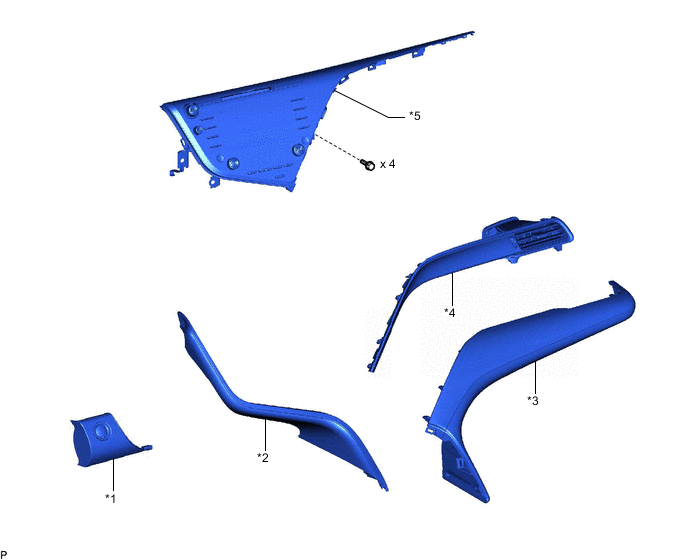

ILLUSTRATION
| *1 | LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY | *2 | NO. 1 METER HOOD CLUSTER |
| *3 | NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY | *4 | NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY |
| *5 | RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET | - | - |

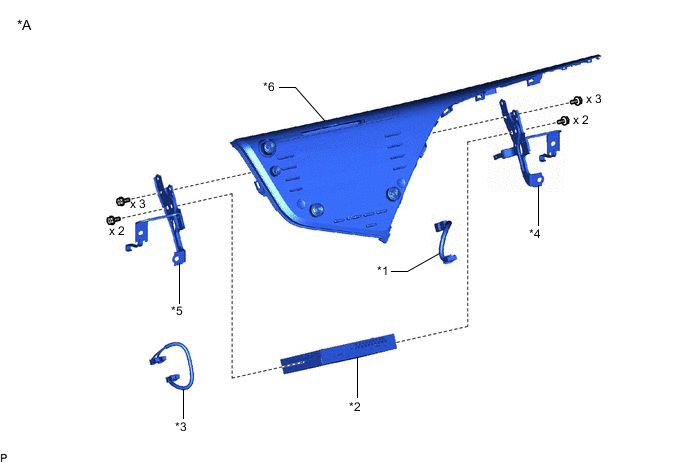

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | MULTI-MEDIA MODULE WIRE | *2 | NAVIGATION ECU |
| *3 | NO. 1 NAVIGATION WIRE | *4 | NO. 1 RADIO RECEIVER BRACKET |
| *5 | NO. 2 RADIO RECEIVER BRACKET | *6 | RADIO AND DISPLAY RECEIVER ASSEMBLY |

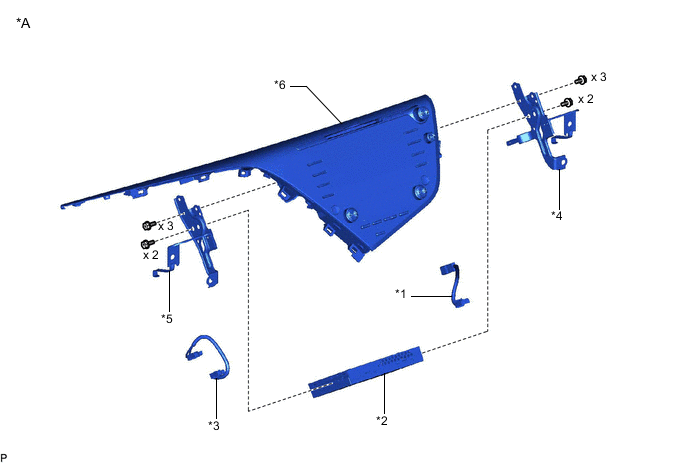

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | MULTI-MEDIA MODULE WIRE | *2 | NAVIGATION ECU |
| *3 | NO. 1 NAVIGATION WIRE | *4 | NO. 1 RADIO RECEIVER BRACKET |
| *5 | NO. 2 RADIO RECEIVER BRACKET | *6 | RADIO AND DISPLAY RECEIVER ASSEMBLY |
