NAVIGATION SYSTEM Radio Receiver Power Source Circuit

DESCRIPTION

This is the power source circuit to operate the radio and display receiver assembly.

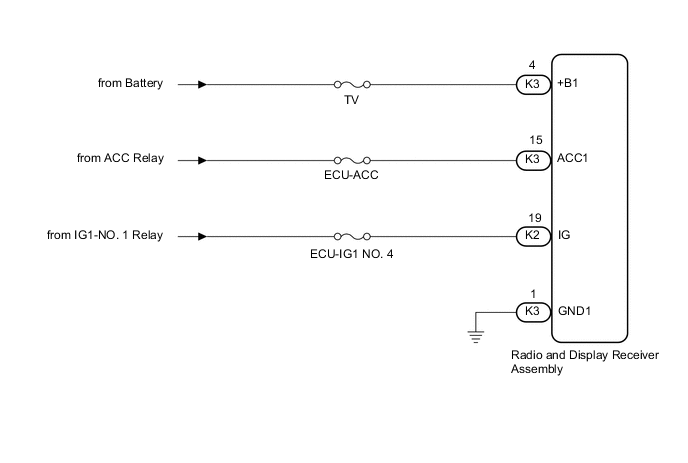

WIRING DIAGRAM

B006XUCE87

CAUTION / NOTICE / HINT

Note

Inspect the fuses for circuits related to this system before performing the following procedure.

PROCEDURE


  1. CHECK HARNESS AND CONNECTOR (RADIO AND DISPLAY RECEIVER ASSEMBLY POWER SOURCE)


    1. Disconnect the K3 and K2 radio and display receiver assembly connectors.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      K3-1 (GND1) - Body ground Always Below 1 Ω

    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition
      K3-4 (+B1) - K3-1 (GND1) Always 11 to 14 V
      K3-15 (ACC1) - K3-1 (GND1) Ignition switch ACC 11 to 14 V
      K2-19 (IG) - K3-1 (GND1) Ignition switch ON 11 to 14 V
      Result
      Proceed to
      OK
      NG

    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
